Ventech Timber/Tile Inset Frameless Grille - VTC250

255 mm

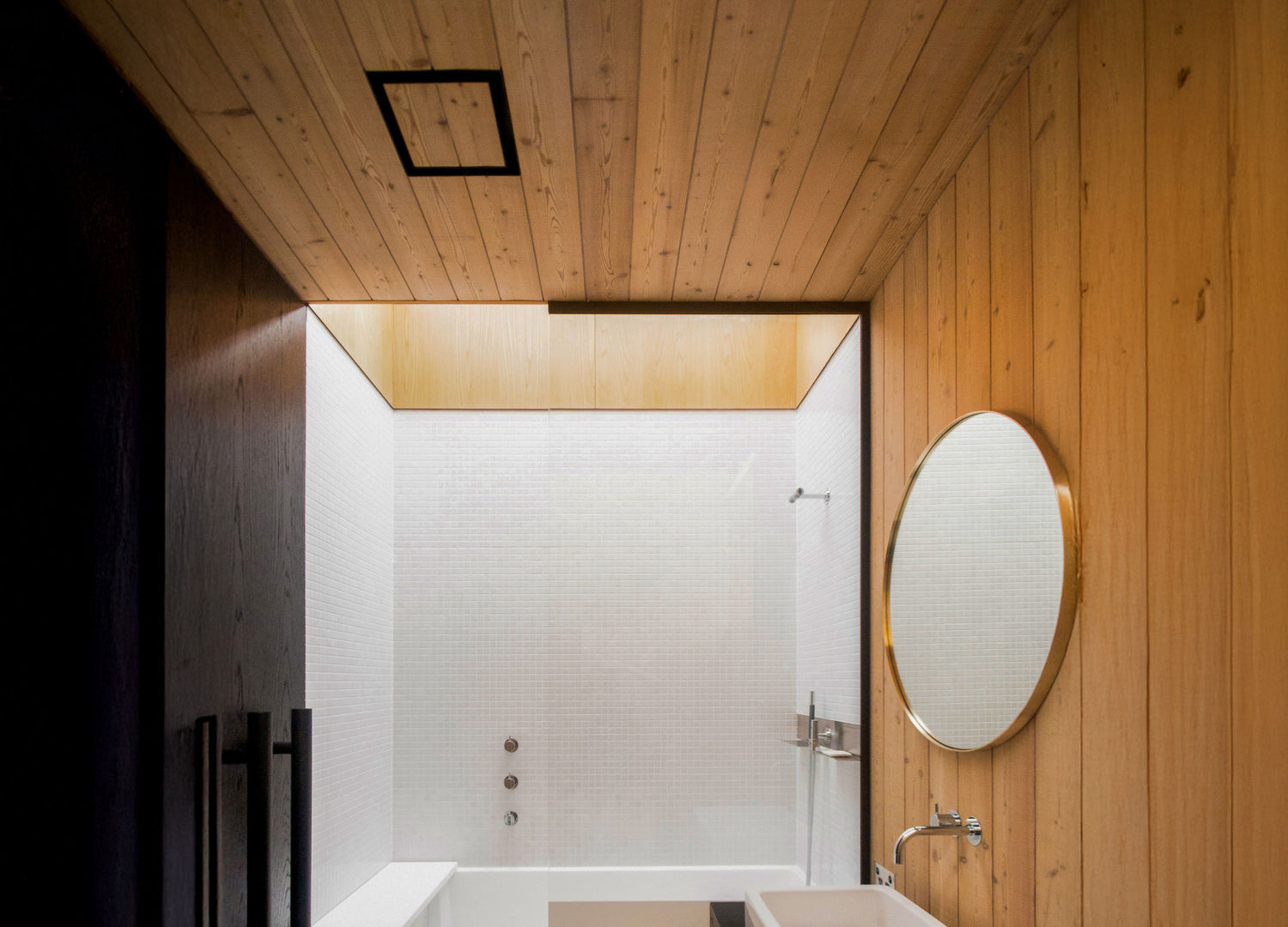

For bathrooms, showers & laundries

Regular price
$348.00 NZD
Regular price
Sale price
$348.00 NZD
GST inclusive
Dimensions

Subtle Negative Detail for Tile or Timber Ceilings and Walls

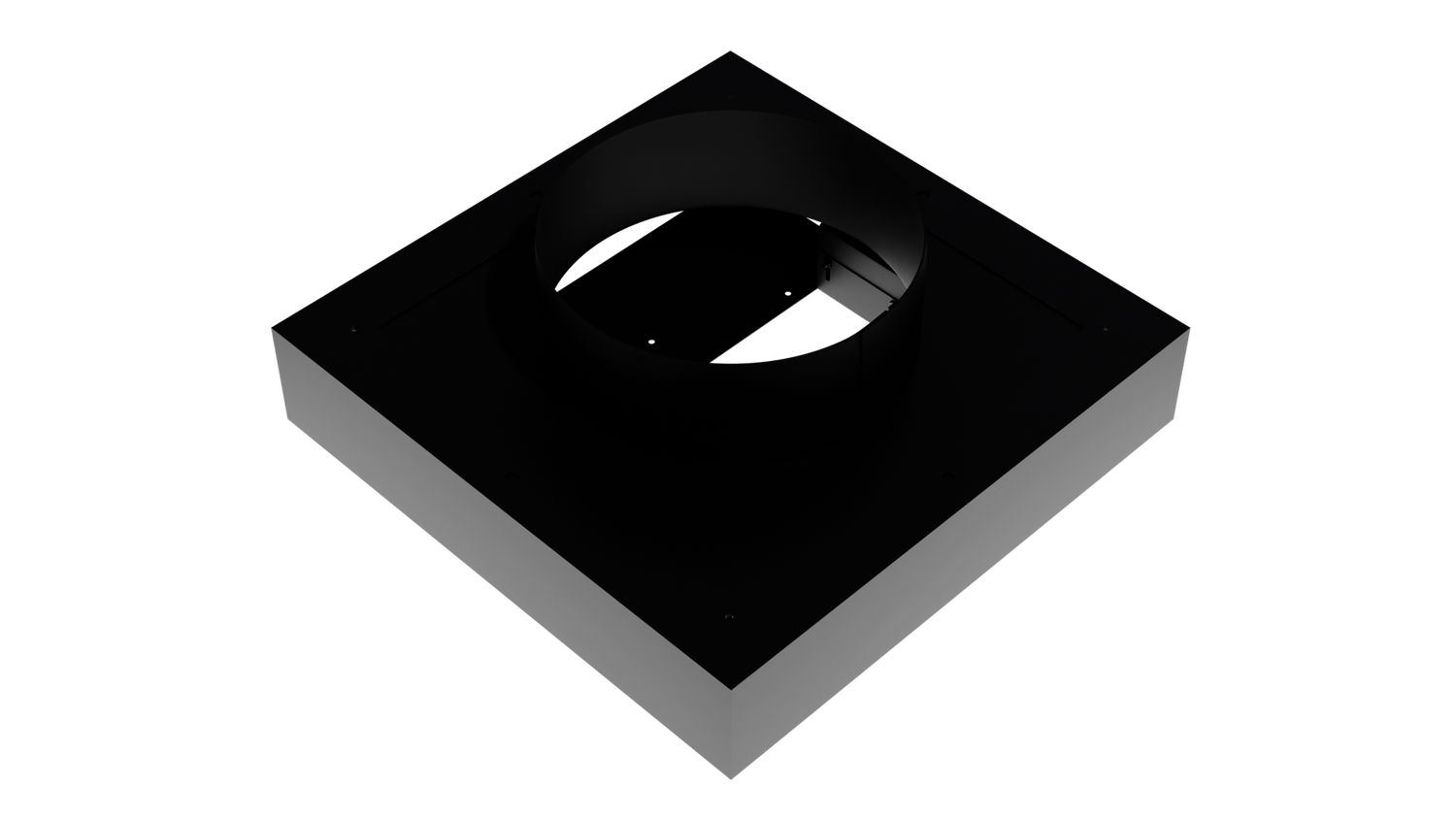

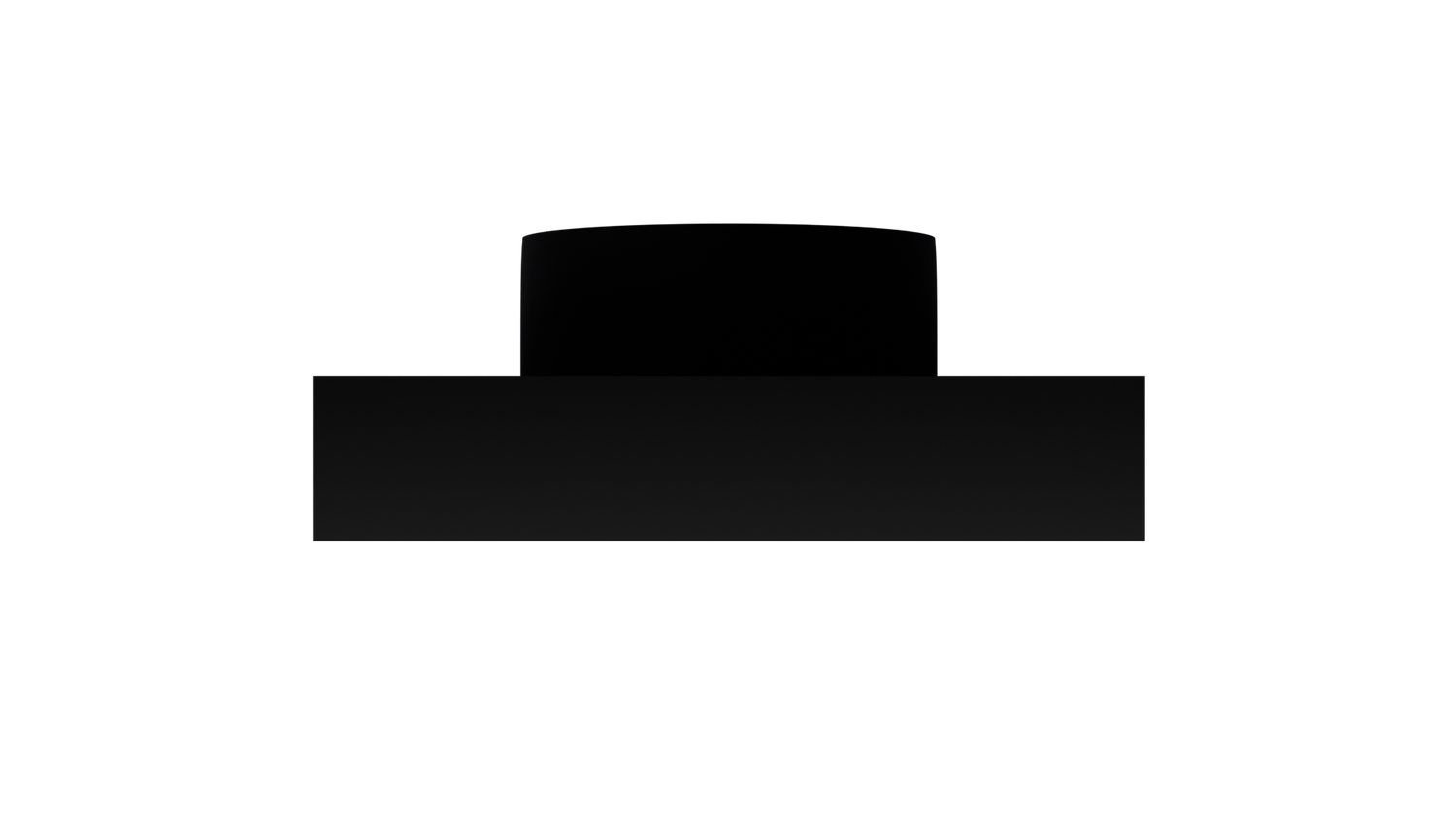

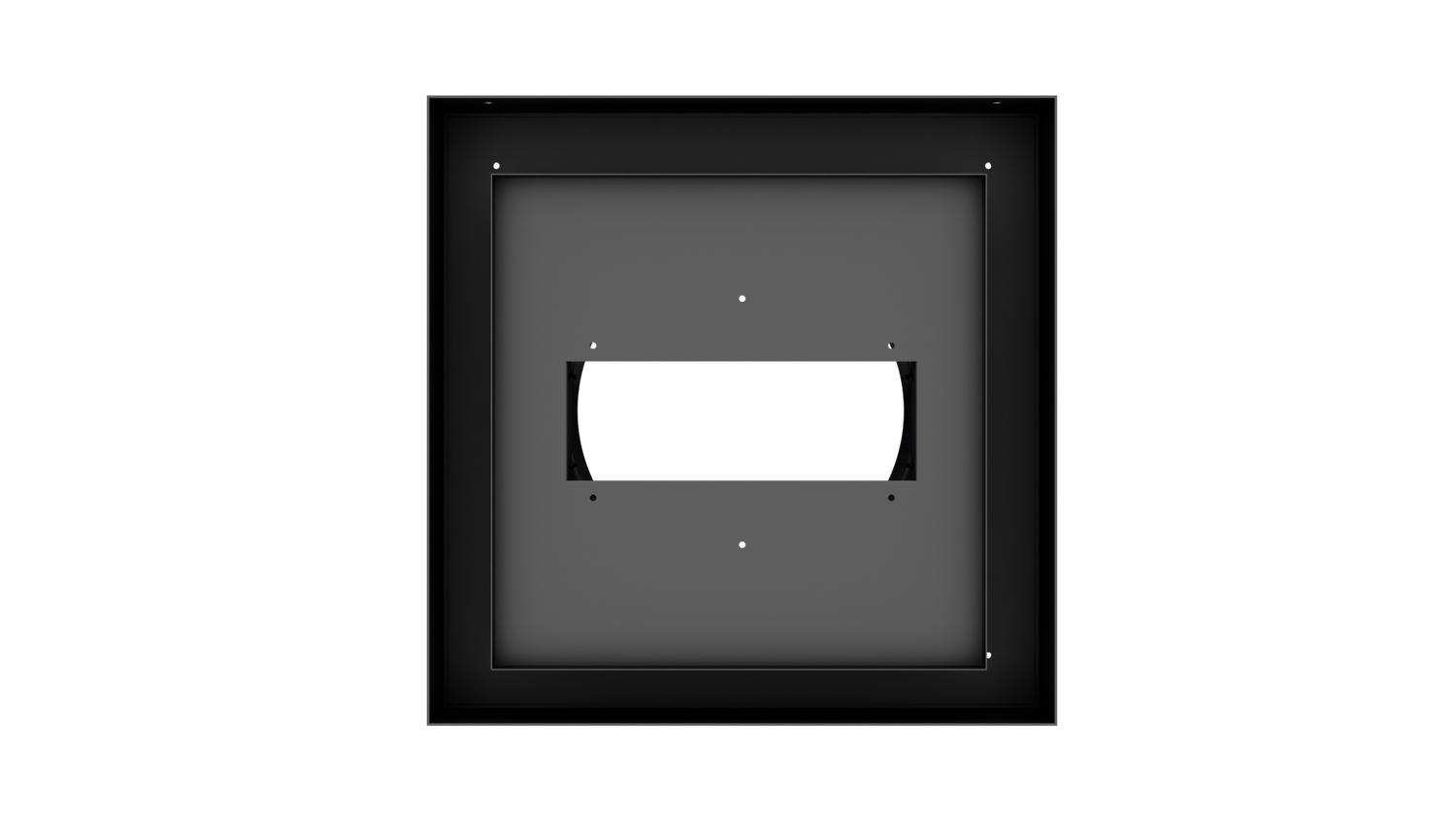

The Ventech VTC250 is a minimalist grille that delivers a refined negative detail, designed specifically for seamless integration into timber or tile ceiling and wall surfaces. Its discreet profile allows a tile or timber insert to be fitted directly into the central plaque, ensuring a precise match with the surrounding finish.

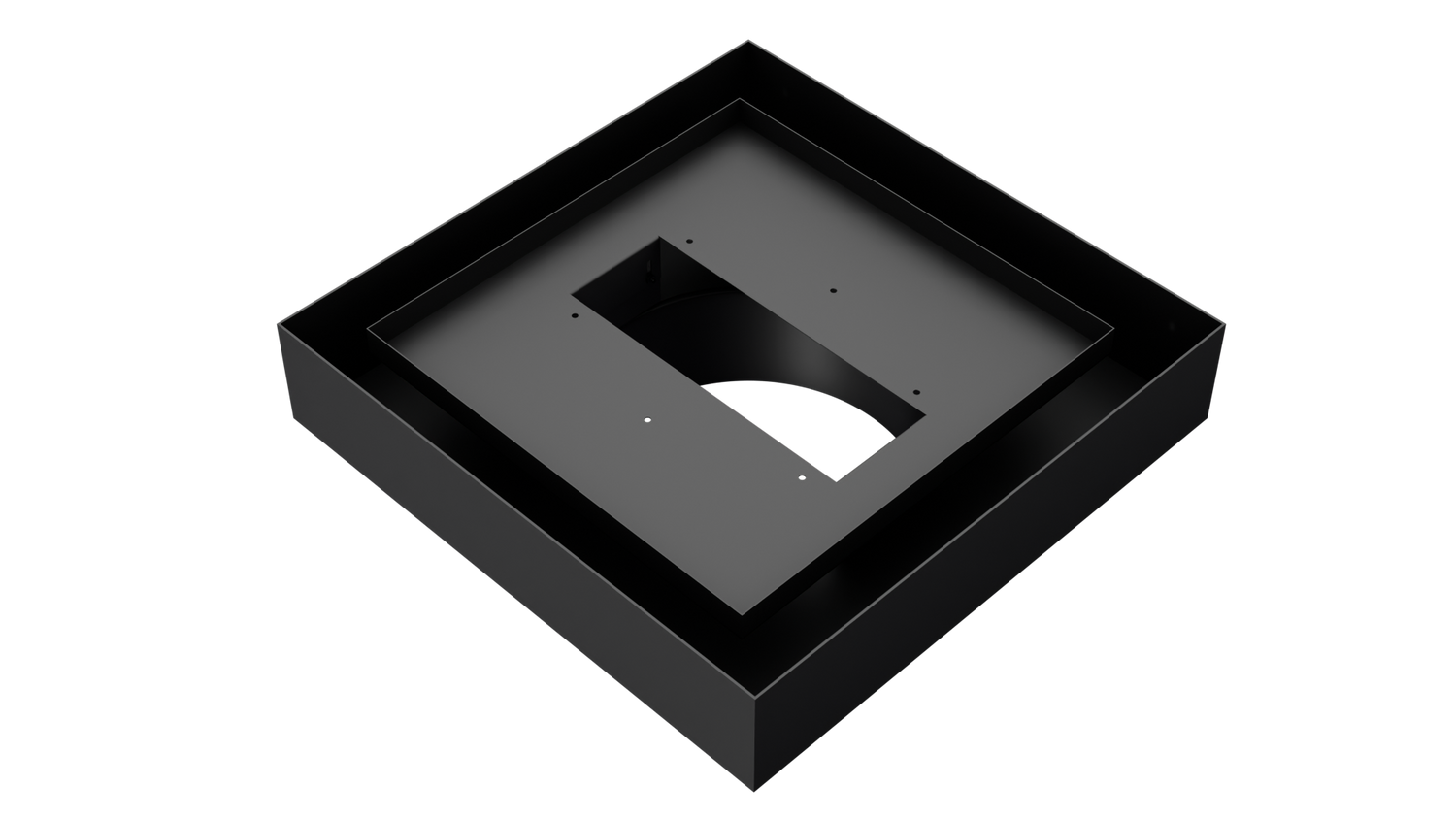

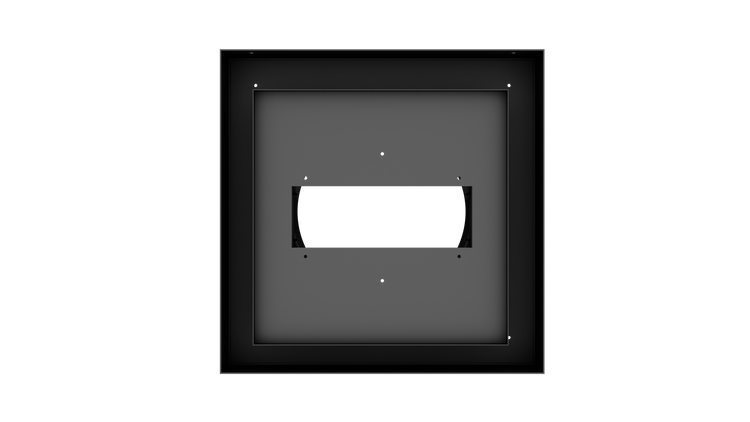

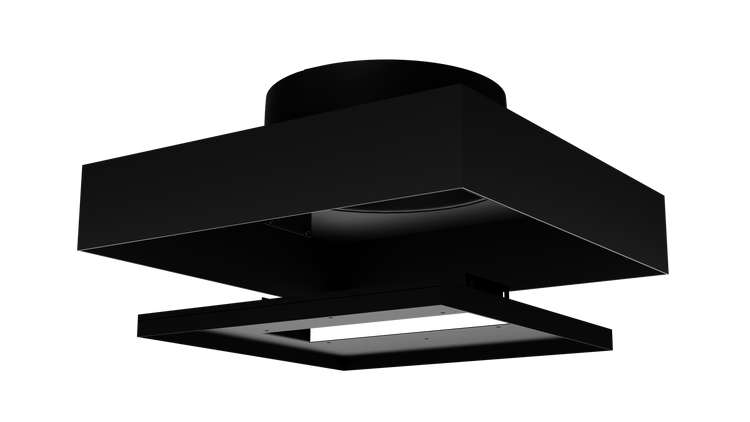

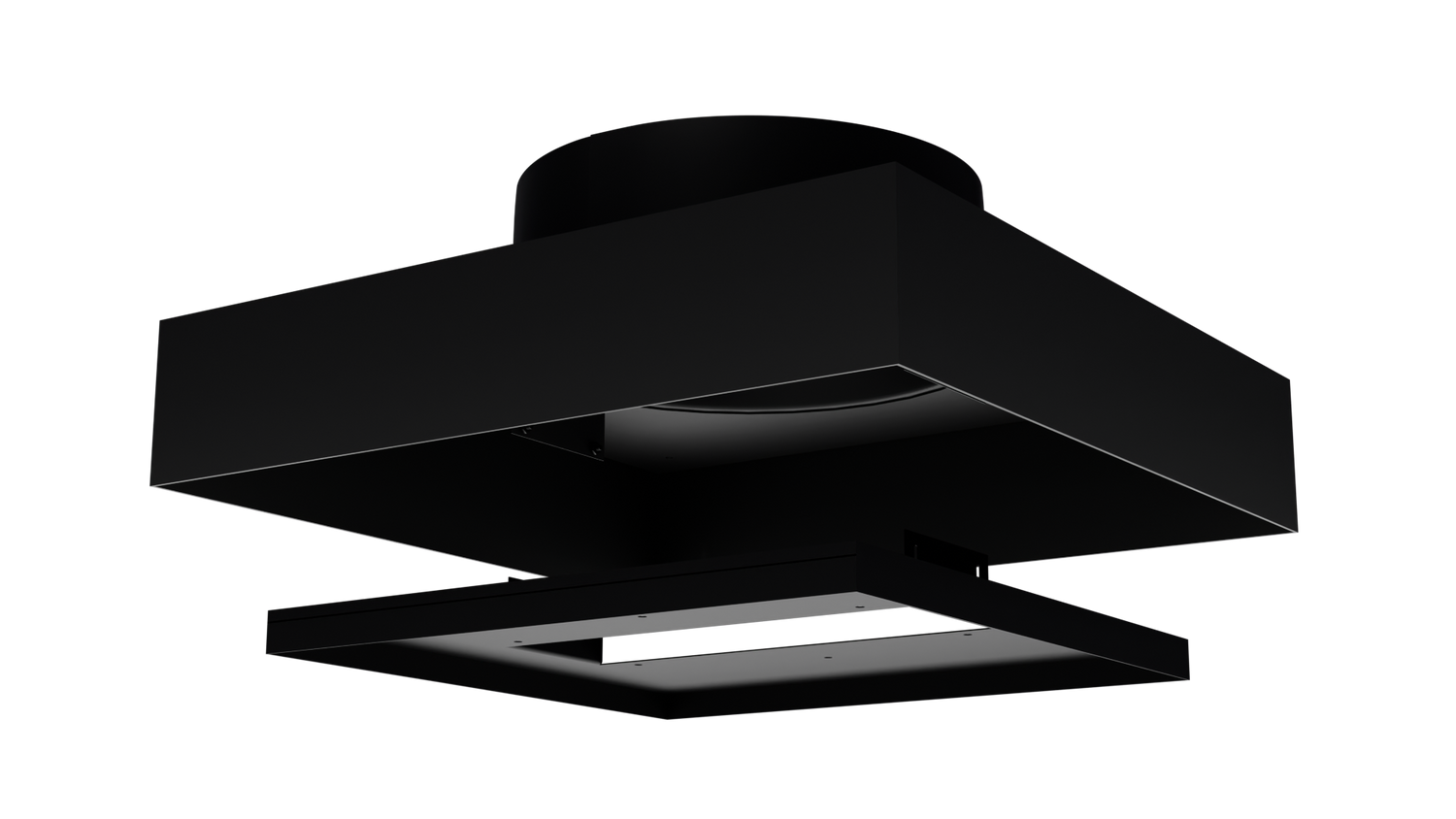

The VTC250 features an adjustable-height central plaque, accommodating varying thicknesses of tile or timber inserts for a flush, uninterrupted surface.

For a back-to-back installation, pair the VTC250 with the Ventech VWM190 for consistent detailing and airflow performance in any space.

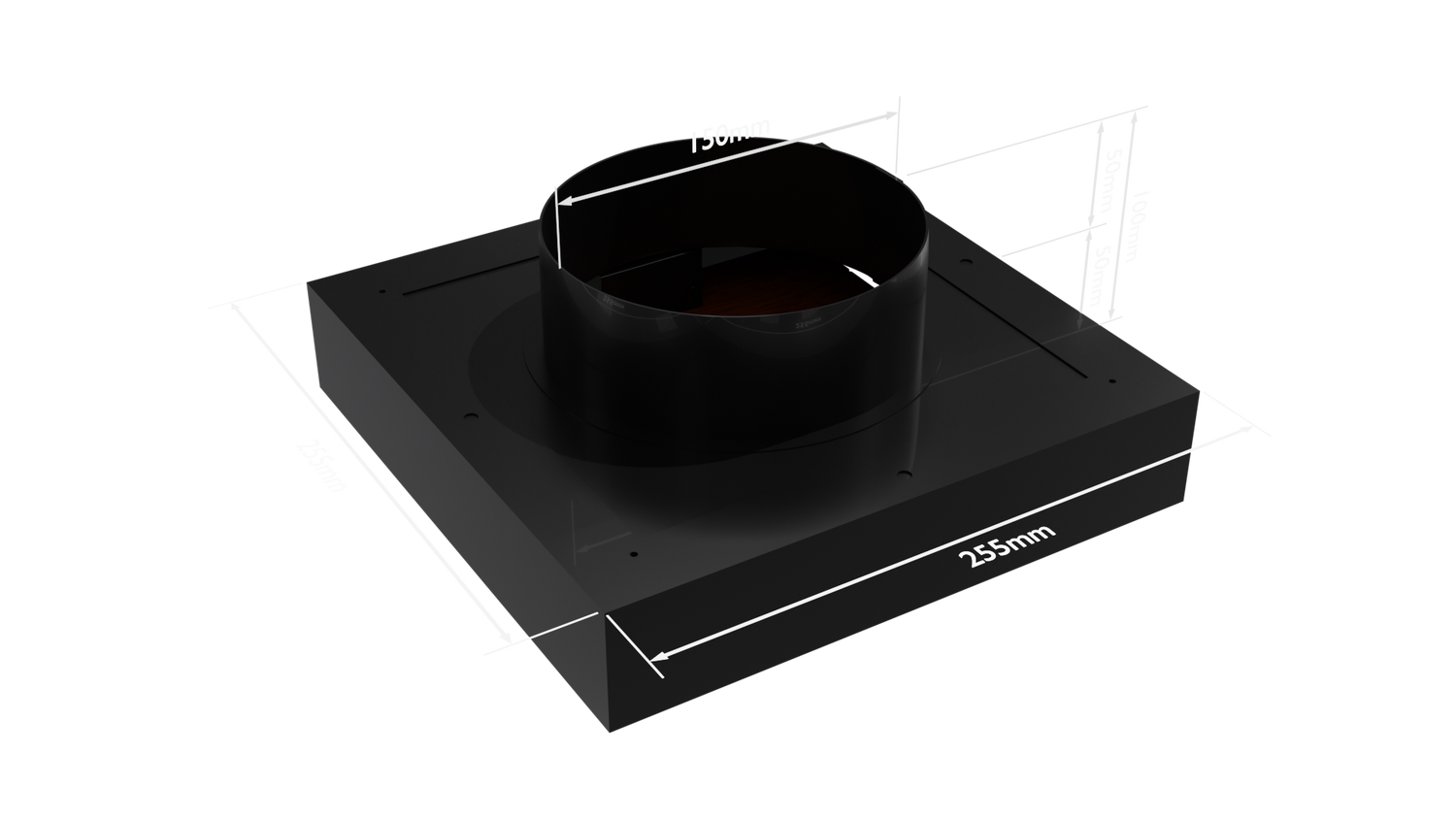

    Full Dimensions

    Dimensions: 255 x 255mm
    Plaque size: 200 x 200mm

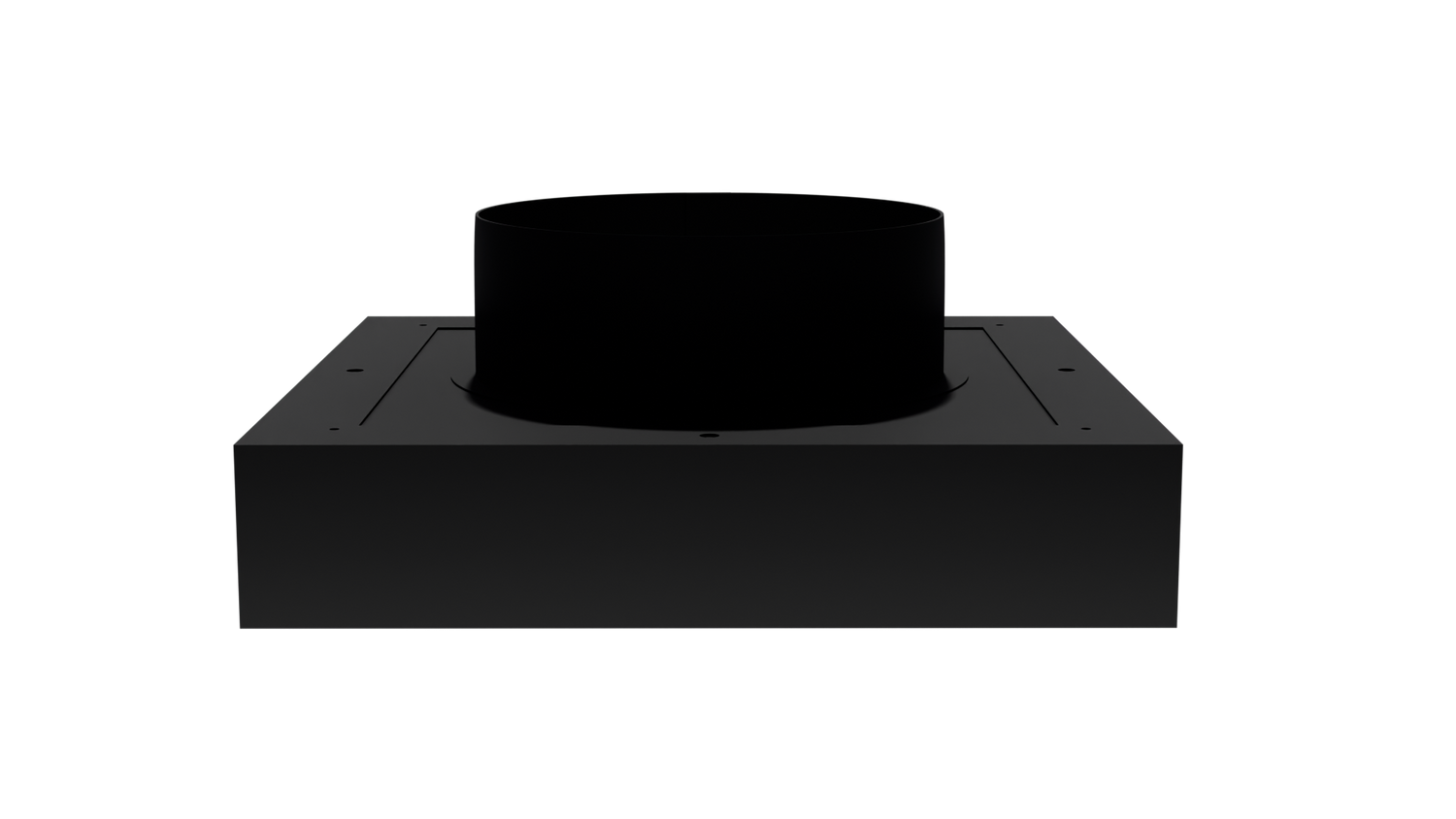

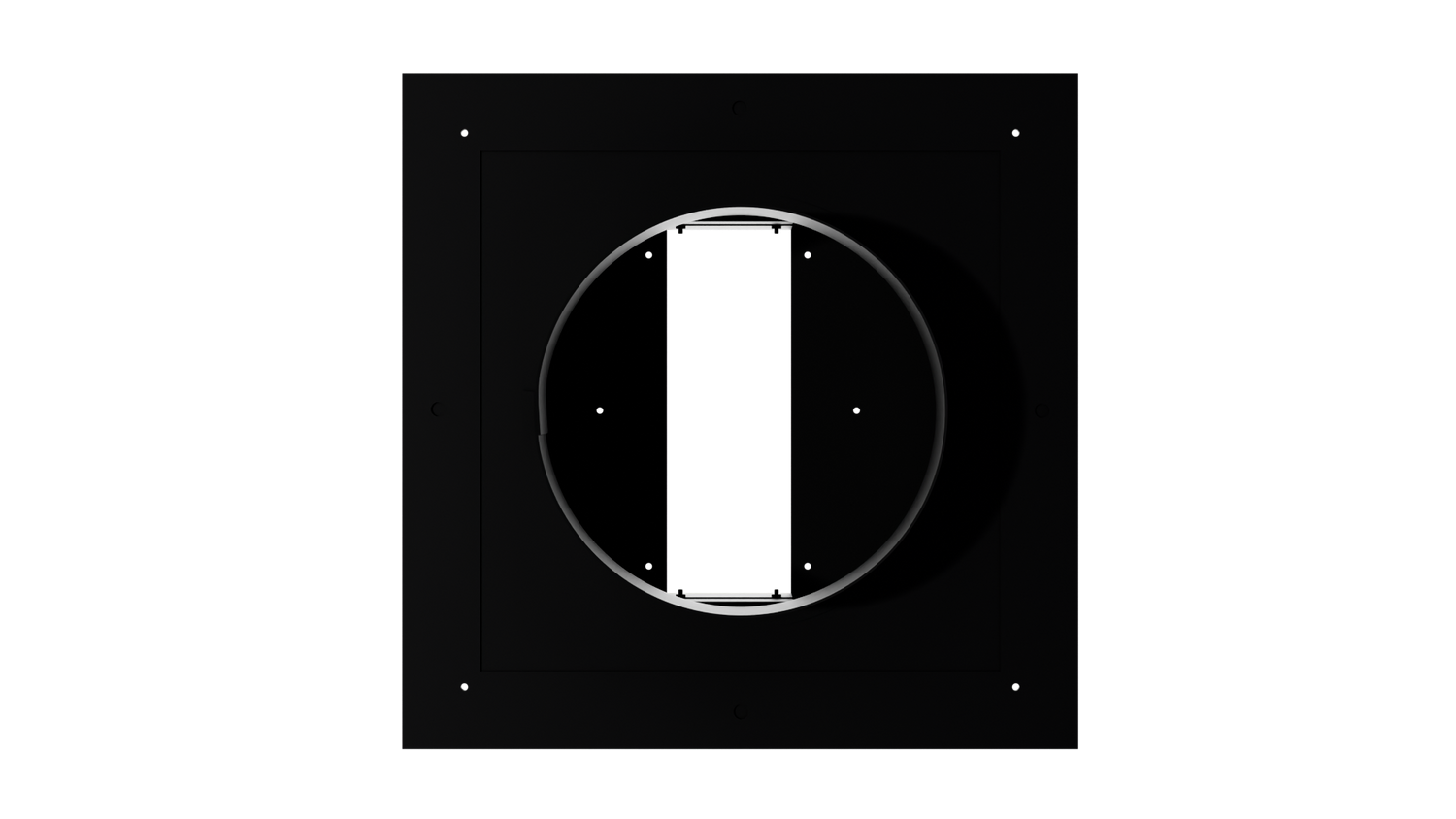

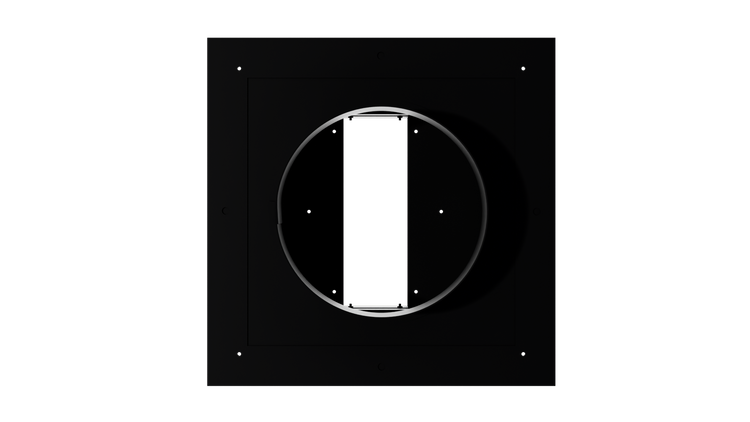

    Top spigot: 150mm dia

    Specifications

    - Ventech VTC250 Timber / Tile Frameless Grille with 150mm spigot.
    - Frame and grille powder coated black.
    - Compatible fans and ductwork also available.
    - Fit back to back with the VWM190-3 exterior fan.
    - At a typical flow rate of 60-70 litres per second, pressure drop is 26 pa.

    Shipping

    Shipping available in New Zealand and Australia only.

    Dimensions

    For the full product brochure click here.

    Download Brochure
