Ventech Clip-In Retrofit Vent and Filter - VCRF250M

250 mm

For bathrooms, showers, laundries & kitchens.

Regular price: $443.00 NZD
Regular price
Sale price: $443.00 NZD
Unit price: per

GST inclusive

Dimensions 250x250

Product variants

Quantity

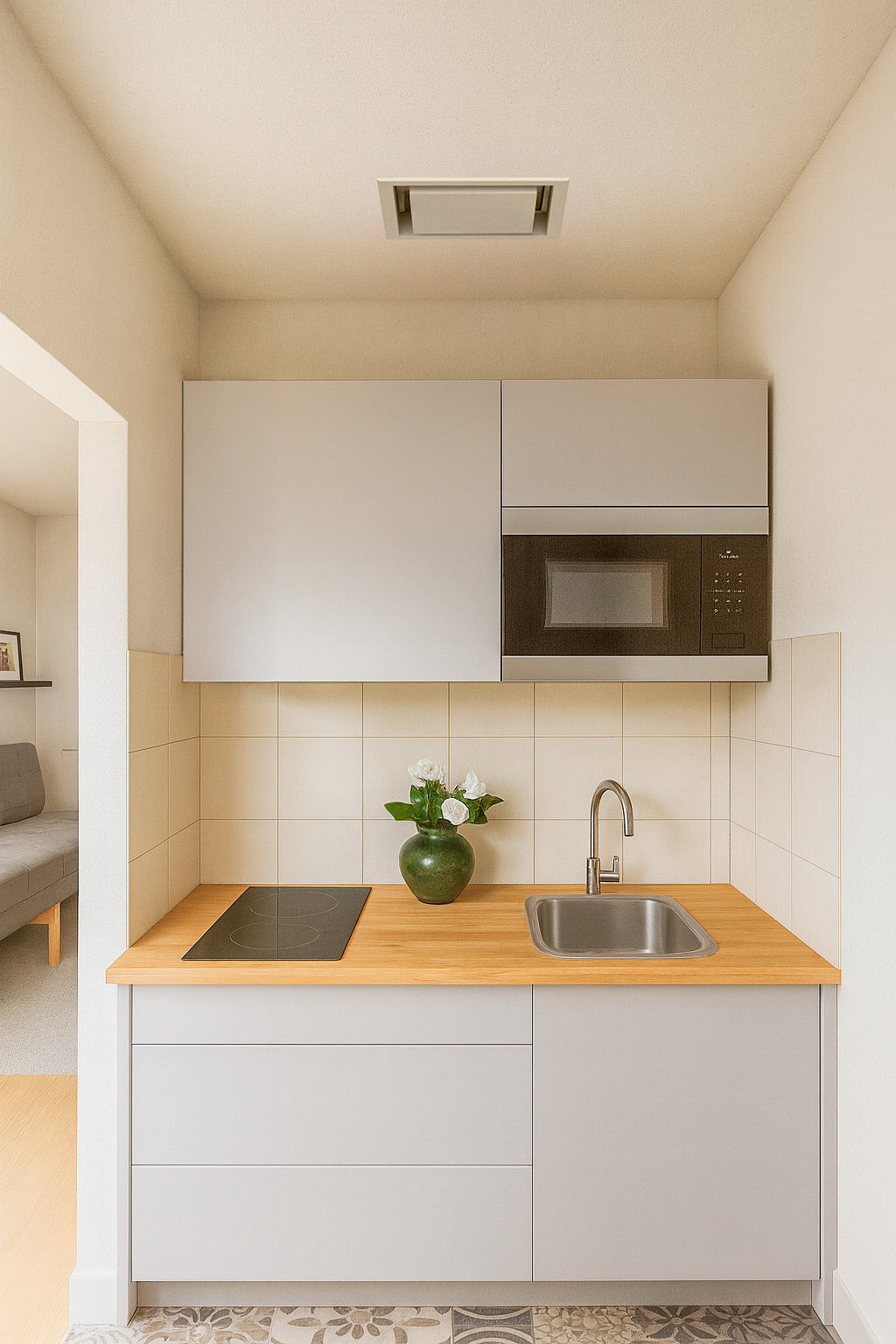

Ventech Easy-Fit Extract Grille with Filter – For Small Kitchenettes

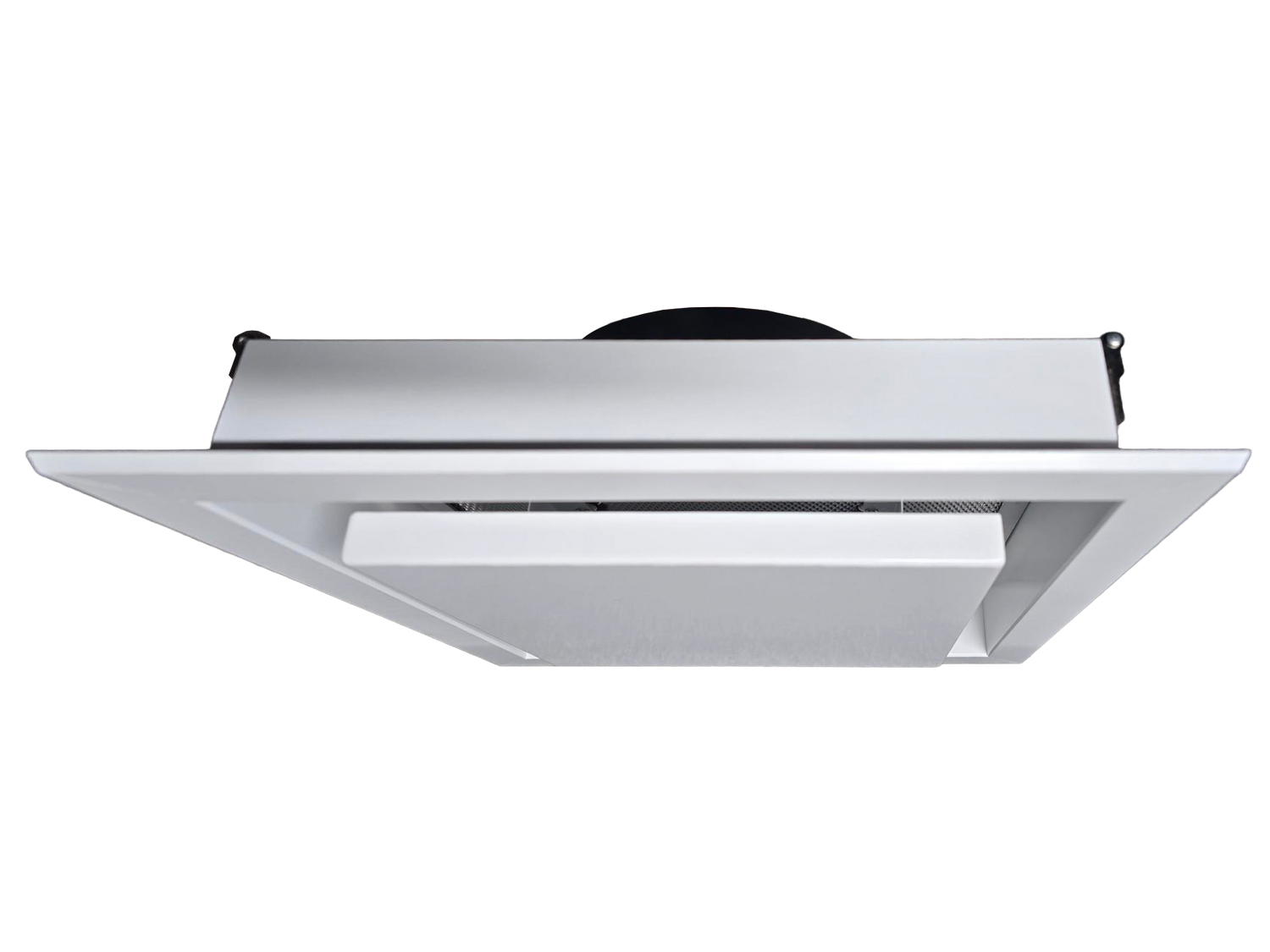

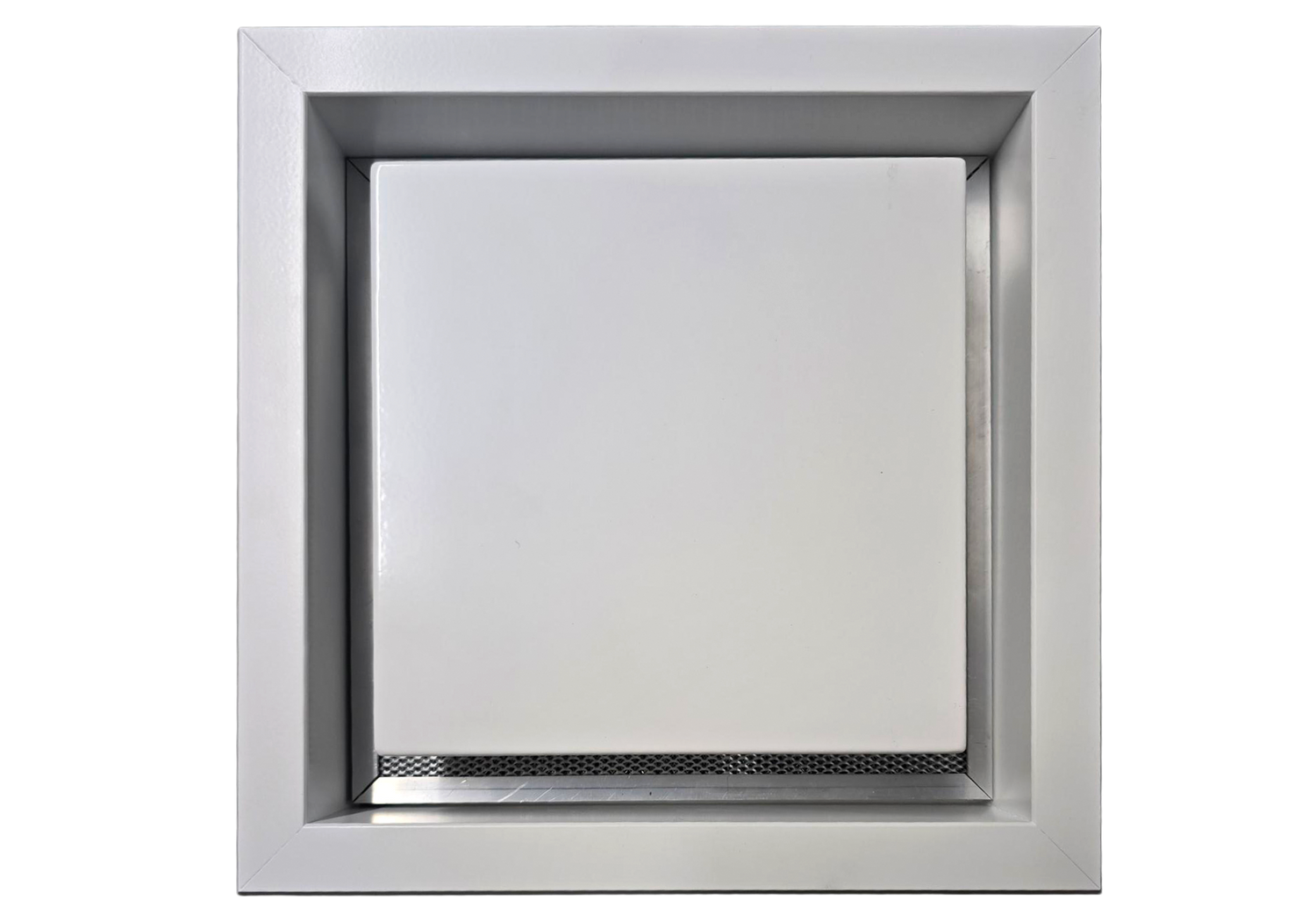

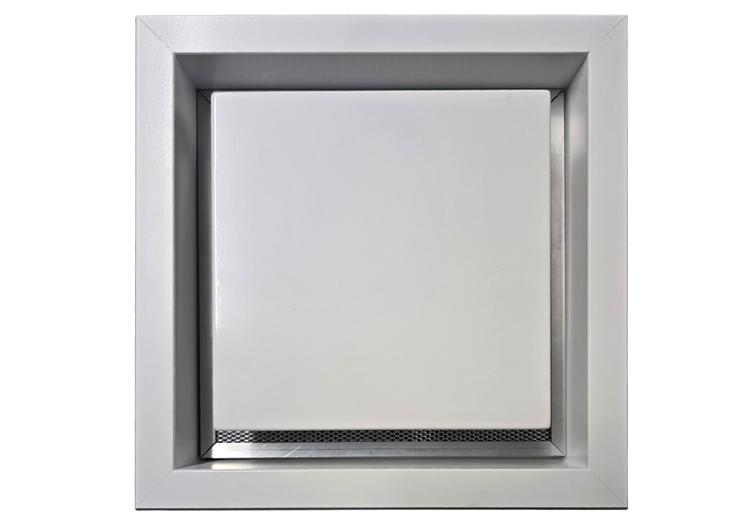

A one-piece, easy-fit extract grille with integrated grease filter—perfect for retrofit applications in small kitchenettes. Designed for installation in plasterboard ceilings or walls, it provides a clean, low-profile finish.

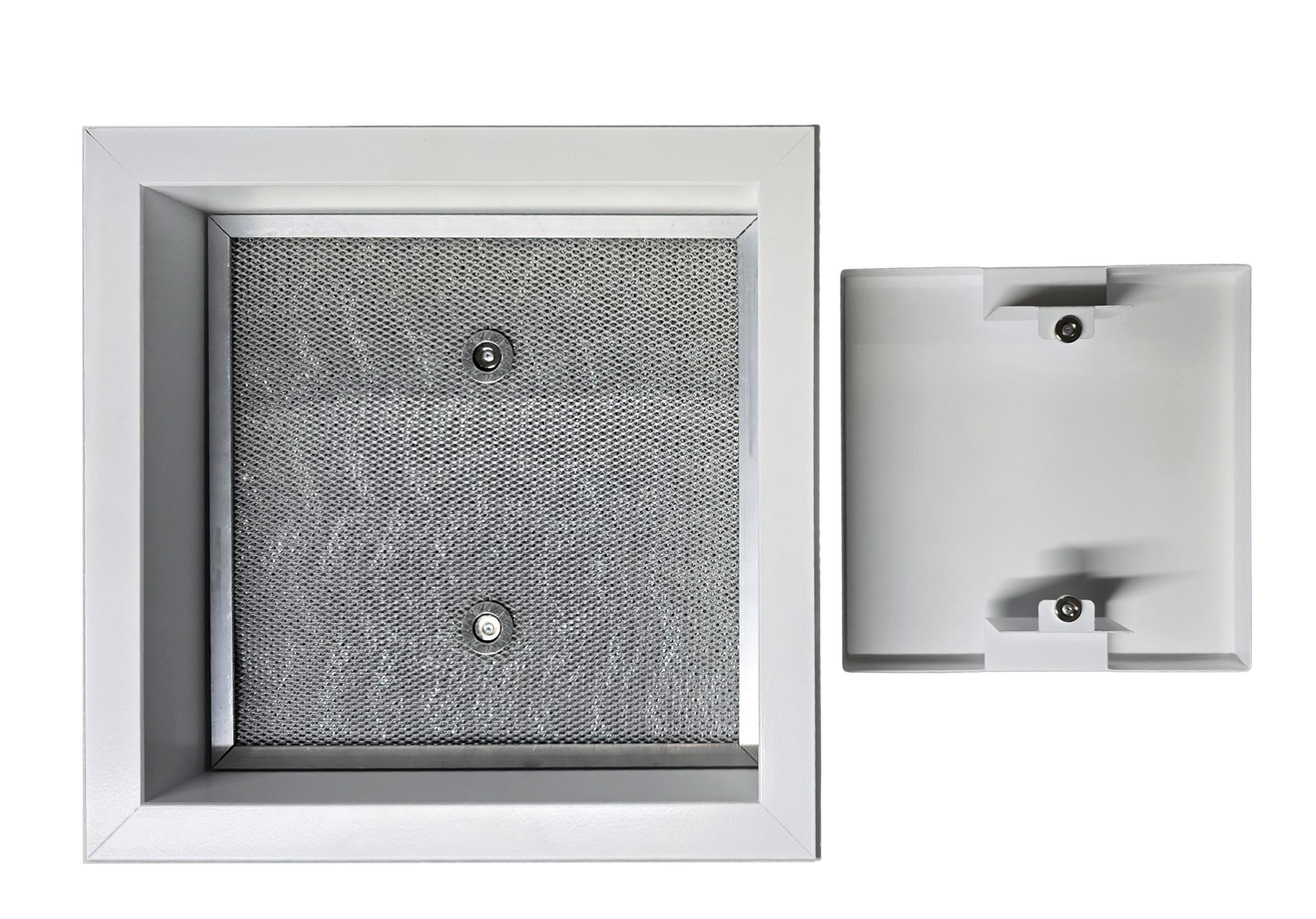

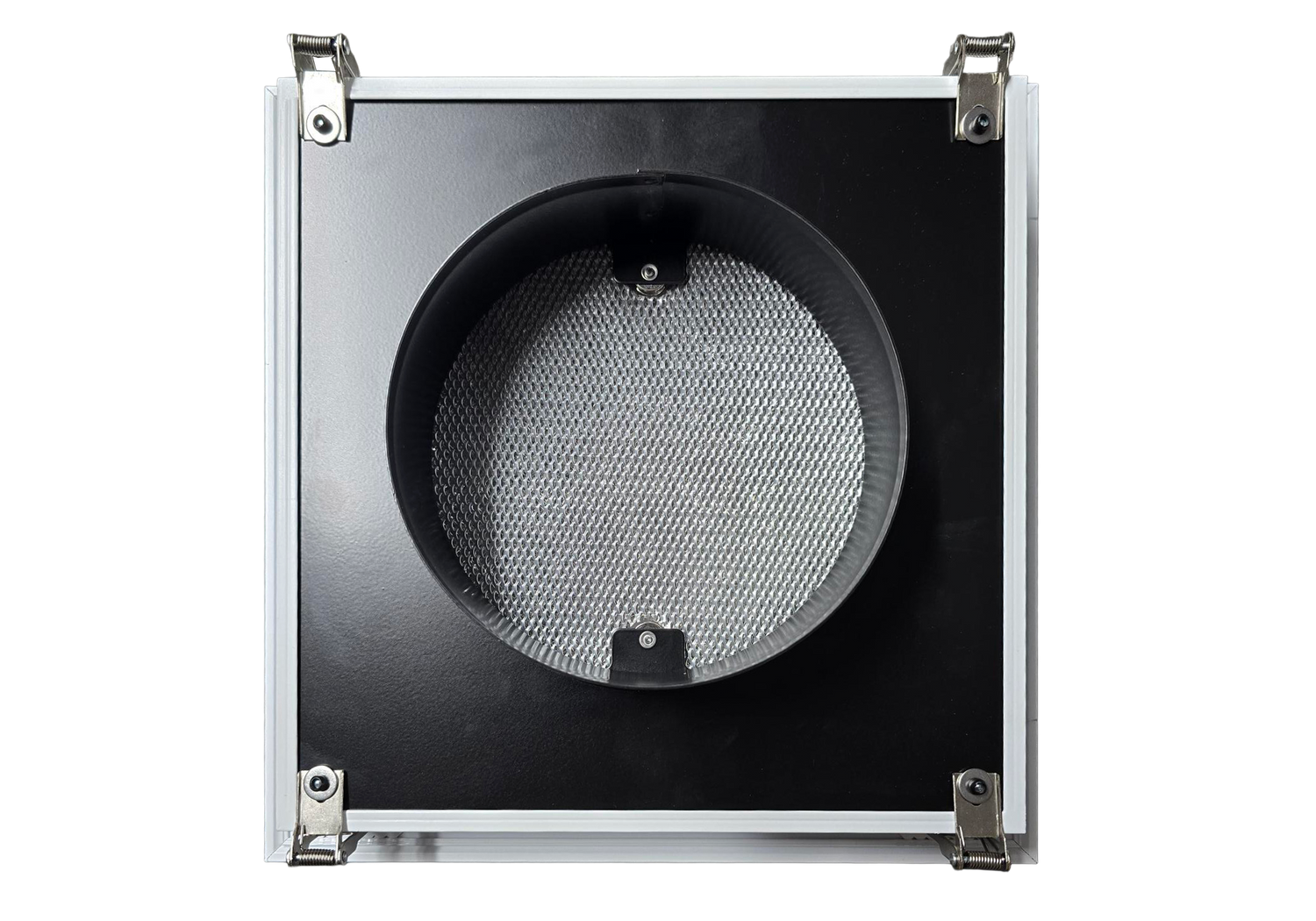

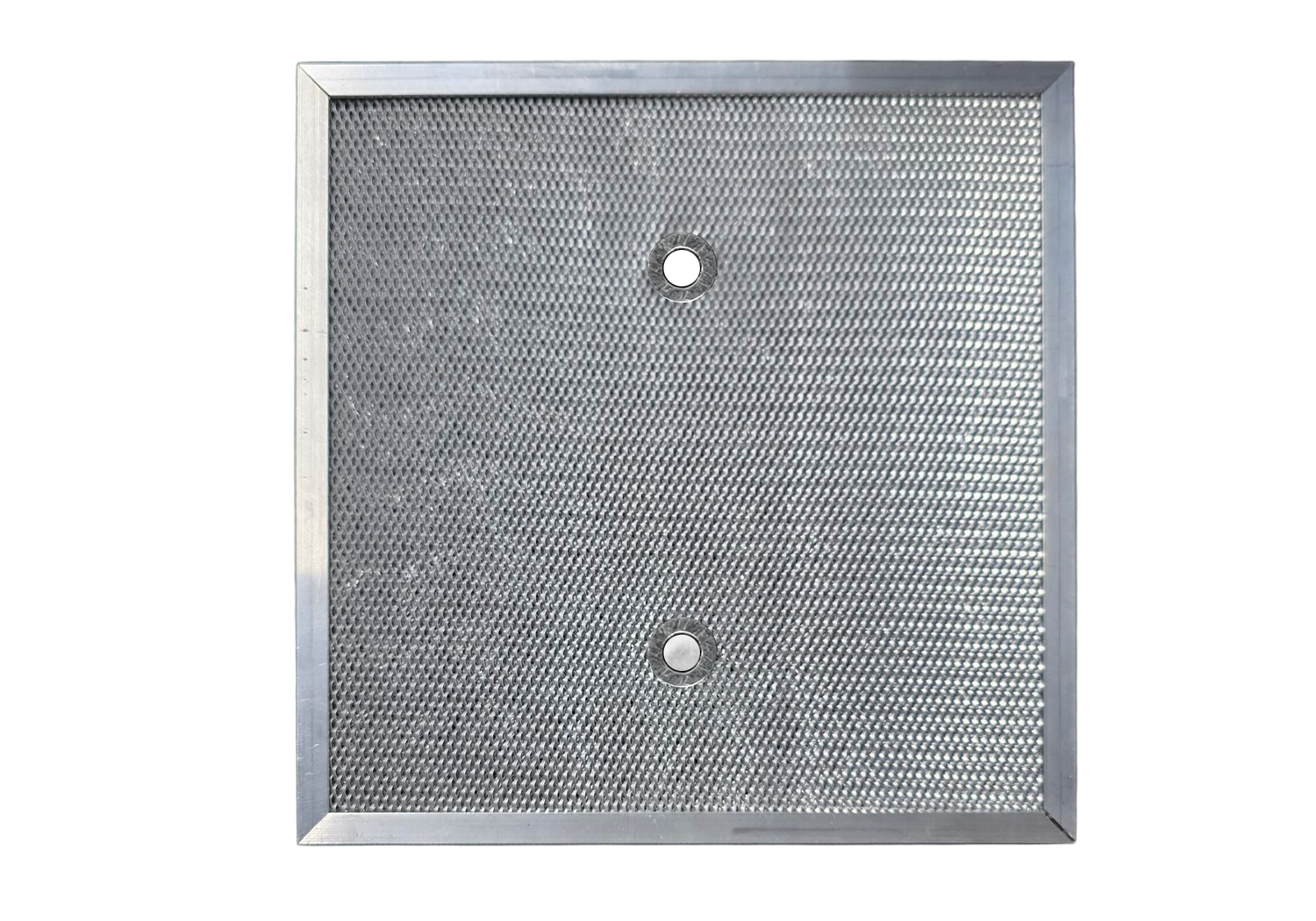

The clip-in frame eliminates the need for battens or screws, while four magnets securely hold the front plaque in place. No tools are required to remove and clean the filter, making maintenance quick and hassle-free.

Full Dimensions

Dimensions: 255mm x 255mm
Plaque size: 200 x 200mm
Top spigot: 150mm dia

Specifications

- Ventech VCRF250 framed grille with clip-in attachment.
- 150mm spigot.
- If required, the exposed surfaces can be re-coloured by painting at the same time as the ceiling.
- Suitable fans, ductwork and exterior fans are also available.
- At a typical flow rate of 60-70 litres per second, pressure drop is 26 pa.
