Ventech Round Frameless Grille - VRG270

HB1040

For bathrooms, showers, laundries & kitchens

Regular price: $464.00 NZD
Regular price
Sale price: $464.00 NZD
Unit price: per

GST inclusive

Product variants

Quantity

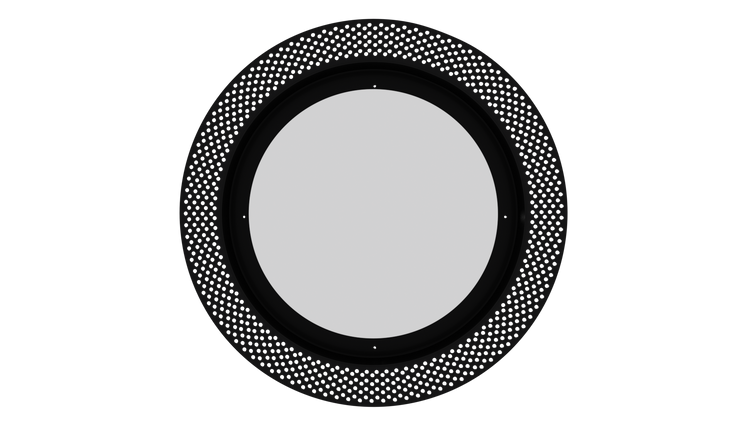

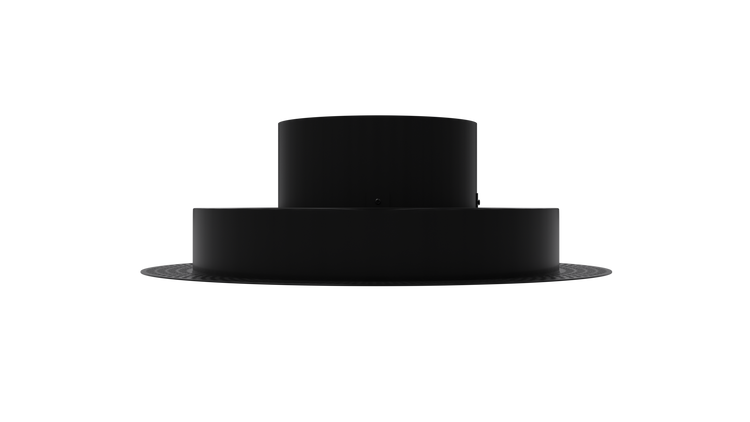

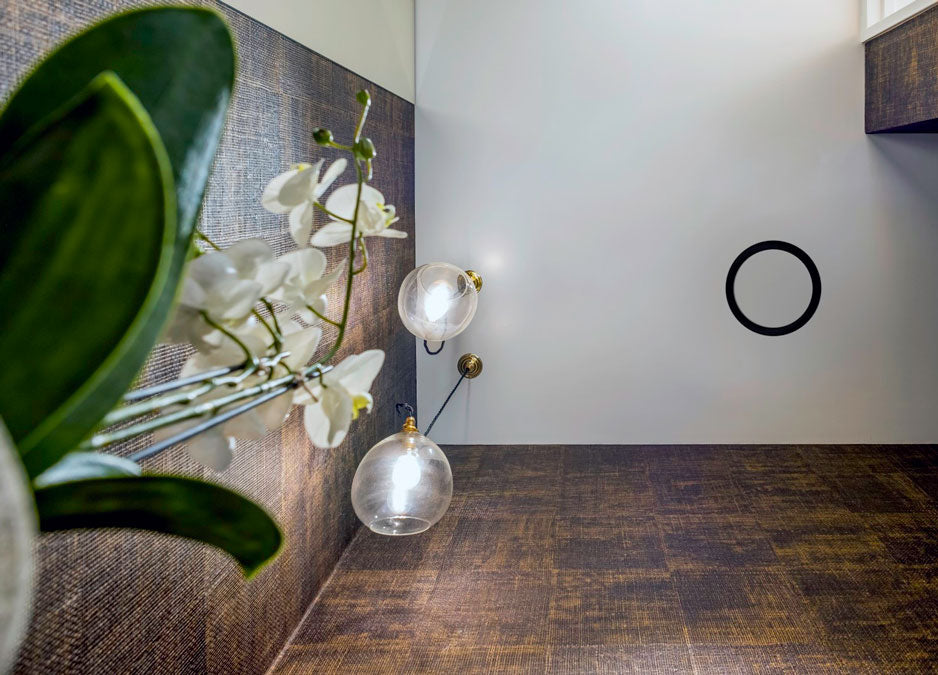

The Ventech VRG270 is a discreet, architectural ceiling grille designed for seamless integration into modern interiors. Featuring a clean 270mm round negative detail with no visible framework or fixings, it offers a refined, minimalist finish.

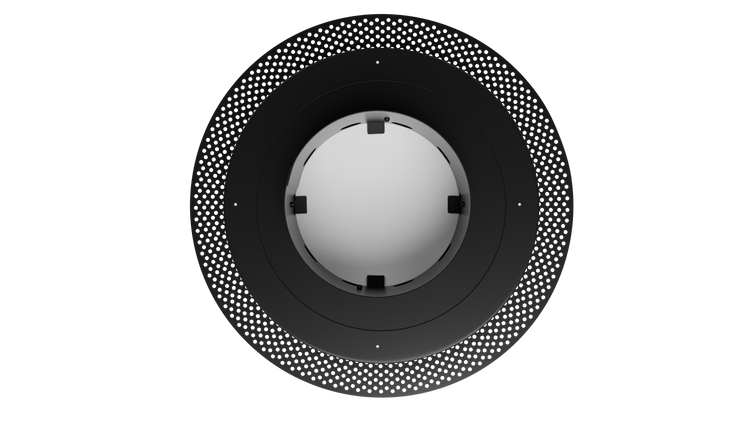

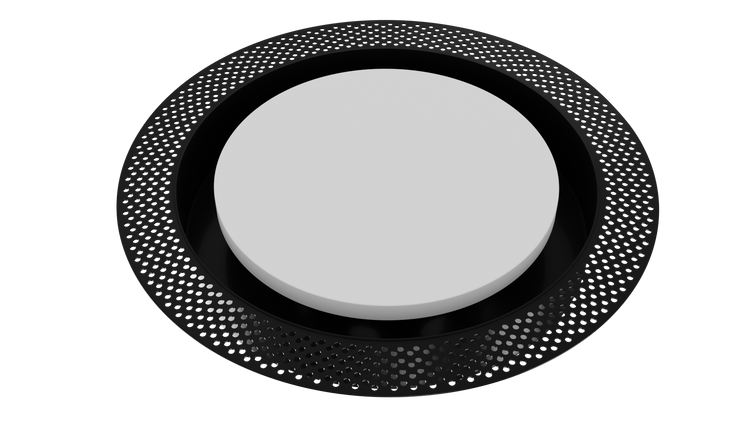

The central plaque is removable, allowing for easy cleaning.

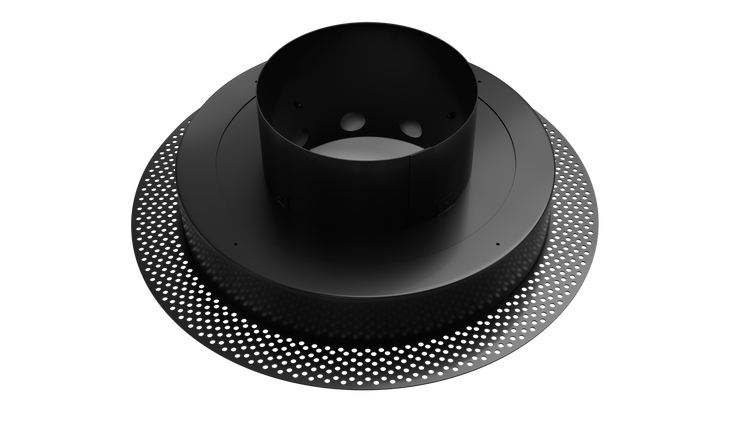

Designed for general ventilation applications, the VRG270 includes a 150mm spigot for duct connection.

For a completely unified ceiling appearance, exposed surfaces can be re-coloured by painting at the same time as the ceiling.

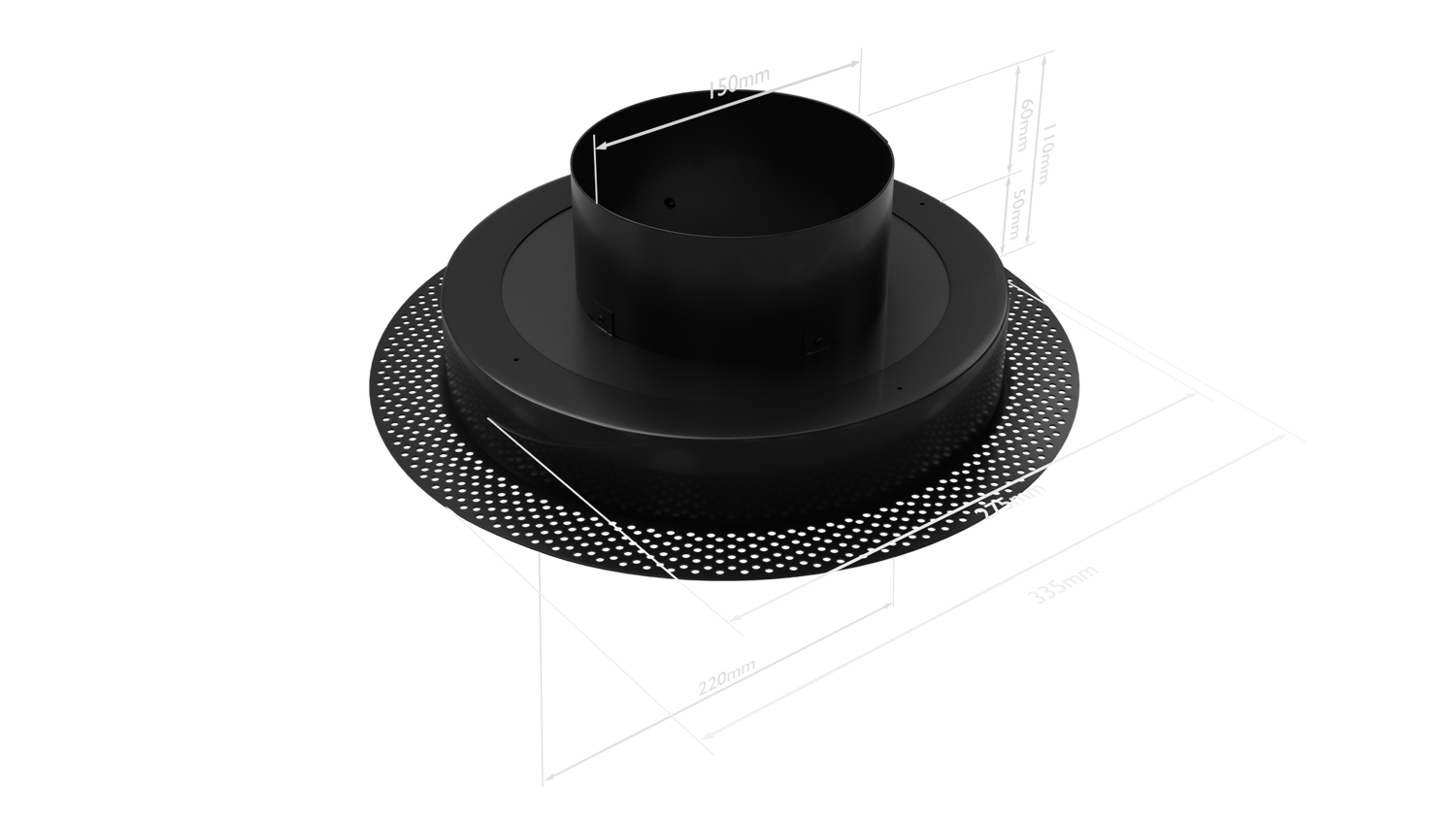

Full Dimensions

Frame : 270mm ID
Plaque size: 220mm OD
Top spigot: 150mm dia

Specifications

- VRG270 Round Frameless Grille with 150mm spigot top entry.
- The frame and plaque are made from zinc plated and powder coated steel.
- Suitable fans, ductwork and exterior grilles are also available.
- At a typical flow rate of 60-70 litres per second, pressure drop is 26 pa.
- Ceiling battens not required.
