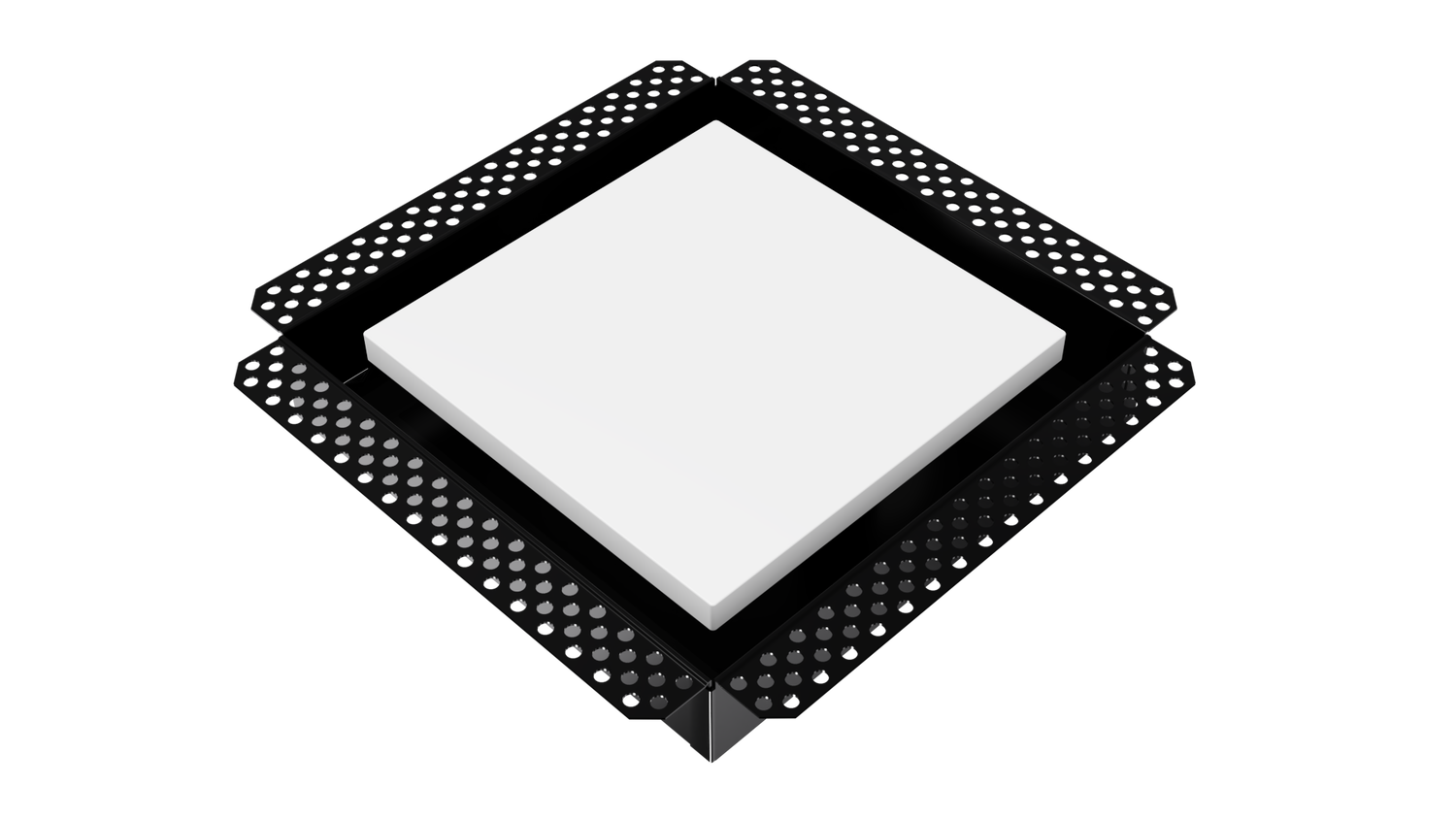

Ventech Frameless Square Magnetic Grille - VSQ250M

VFG250 HB1010 / 250

250 mm

For bathrooms, laundries, showers, heat transfer and ventilation..

Regular price
$314.00 NZD
Regular price
Sale price
$314.00 NZD
GST inclusive
Packaging

The Ventech VSQ250M is a discreet, architectural ceiling grille designed for seamless integration into modern interiors. Featuring a clean 250mm square negative detail with no visible framework or fixings, it offers a refined, minimalist finish.

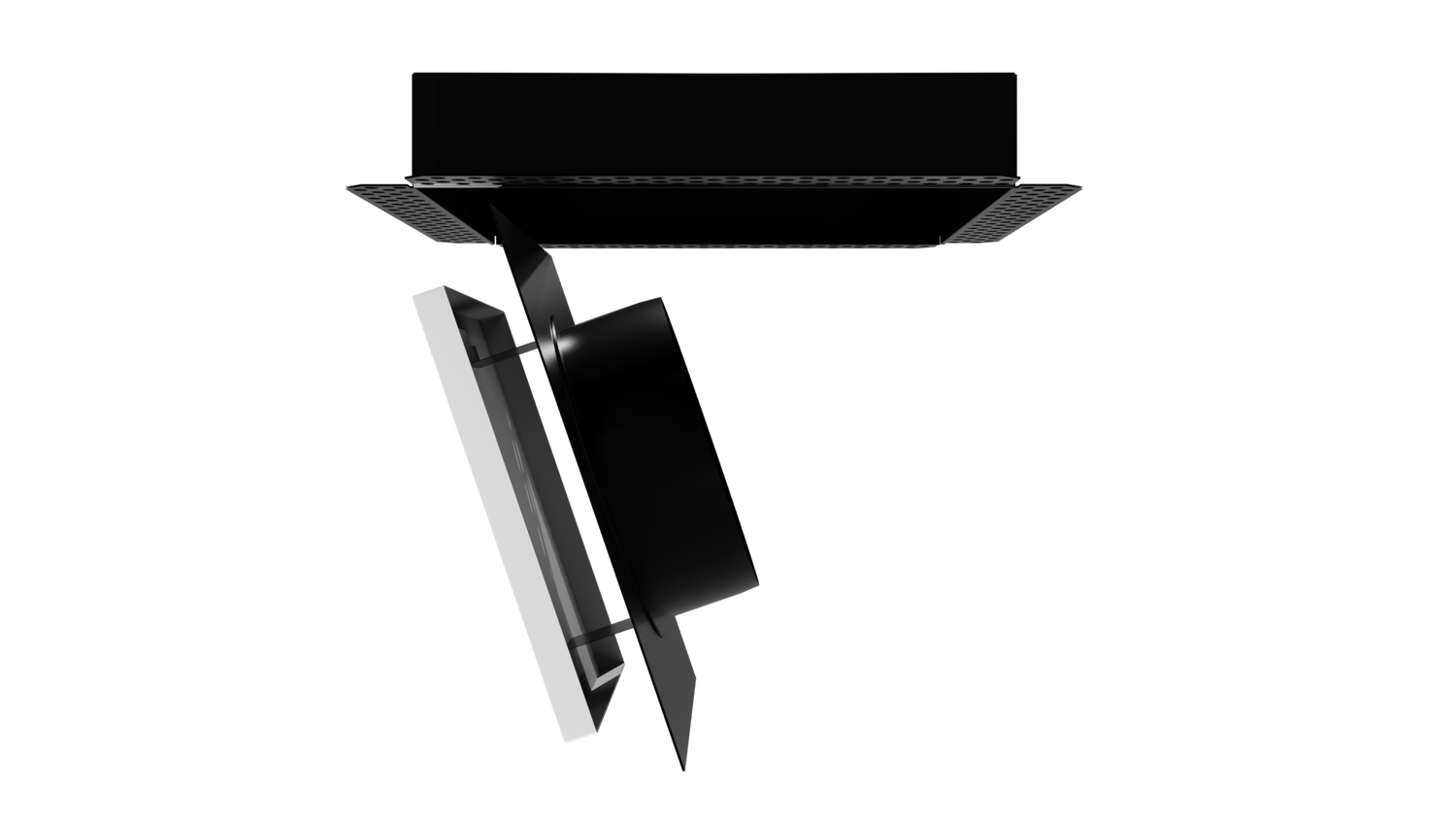

The central plaque is magnetically mounted, allowing for easy removal and cleaning.

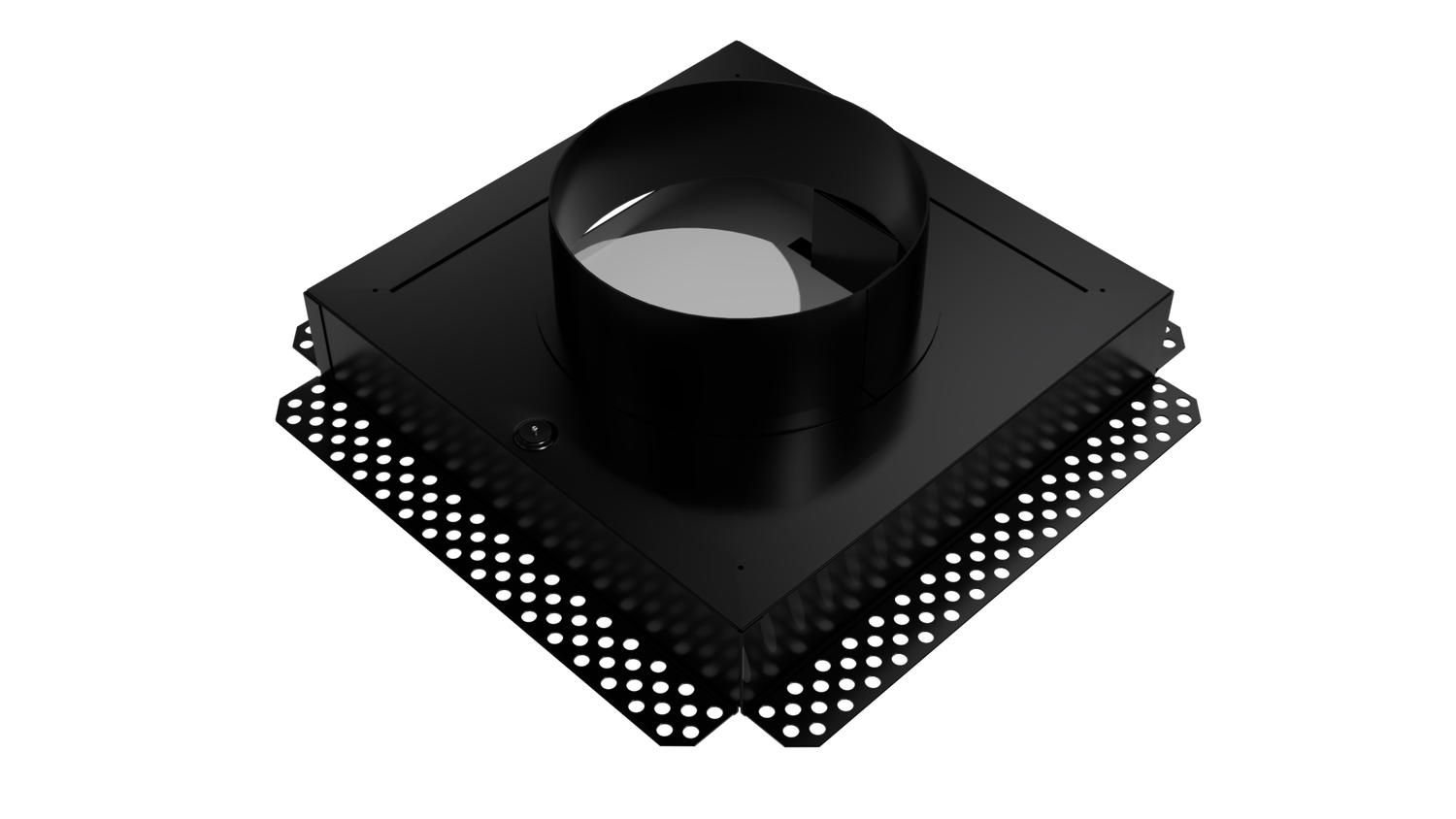

Designed for general ventilation applications, the VSQ250M includes a 150mm spigot for duct connection.

For a completely unified ceiling appearance, exposed surfaces can be re-coloured by painting at the same time as the ceiling.

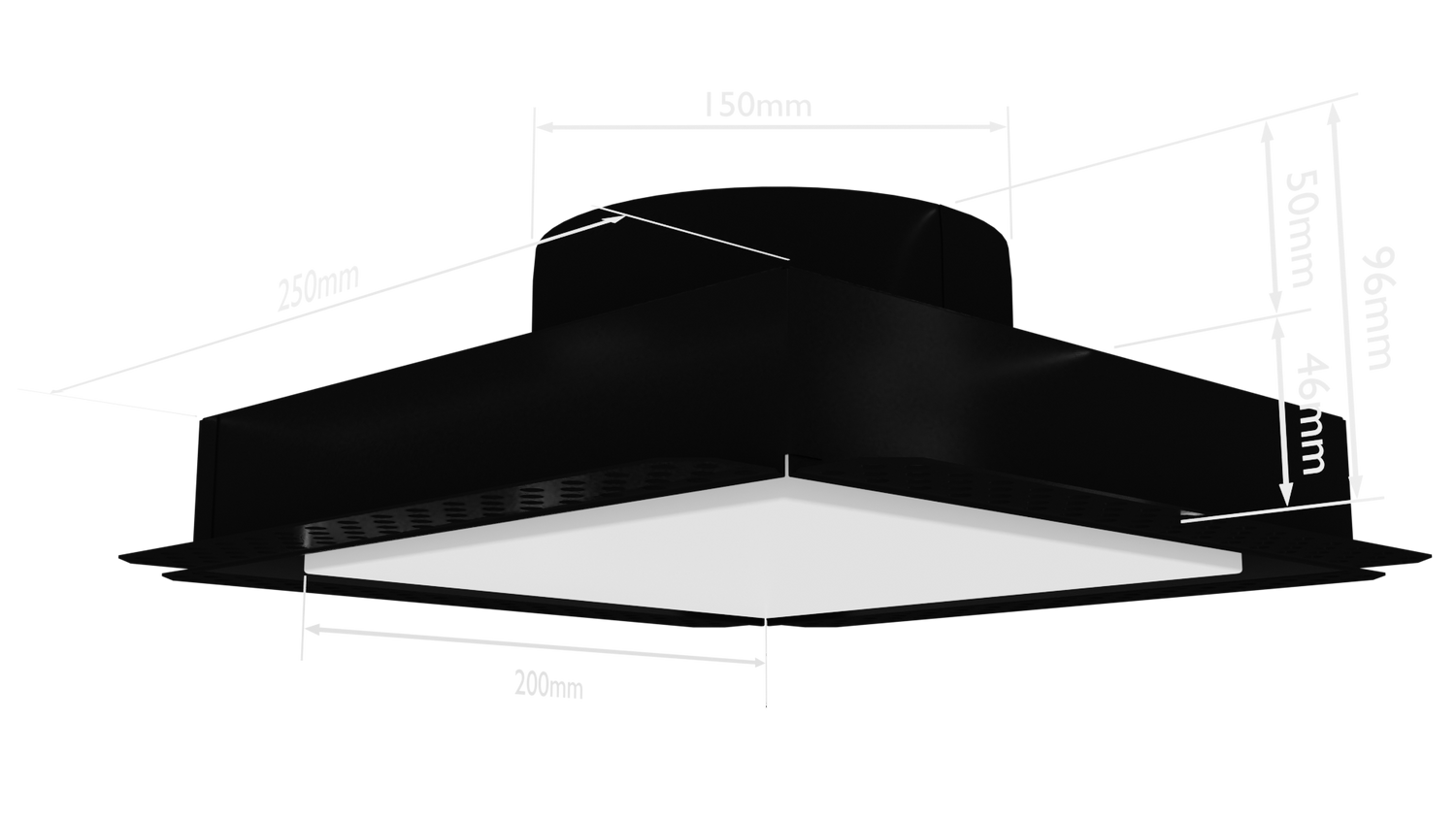

Full Dimensions

Dimensions: 250 x 250 mm
Plaque size: 200 x 200 mm
Top spigot: 150mm dia

Specifications

- Ventech VSQ250M Frameless Magnetic Grille with 150mm spigot.
- Central plaque magnetically attached.
- The frame and plaque are made from zinc plated and powder coated steel.
- Suitable fans, ductwork and exterior grilles are also available.
- At a typical flow rate of 60-70 litres per second, pressure drop is 26 pa.
- Ceiling battens not required.

Shipping

Shipping available in New Zealand and Australia only.

Dimensions

For the full product brochure click here.

Download Brochure
