Ventech Round Frameless Vent Inset - VRG270T

For bathrooms, showers, laundries & kitchens

Regular price
$668.00 NZD
Regular price
Sale price
$668.00 NZD
GST inclusive

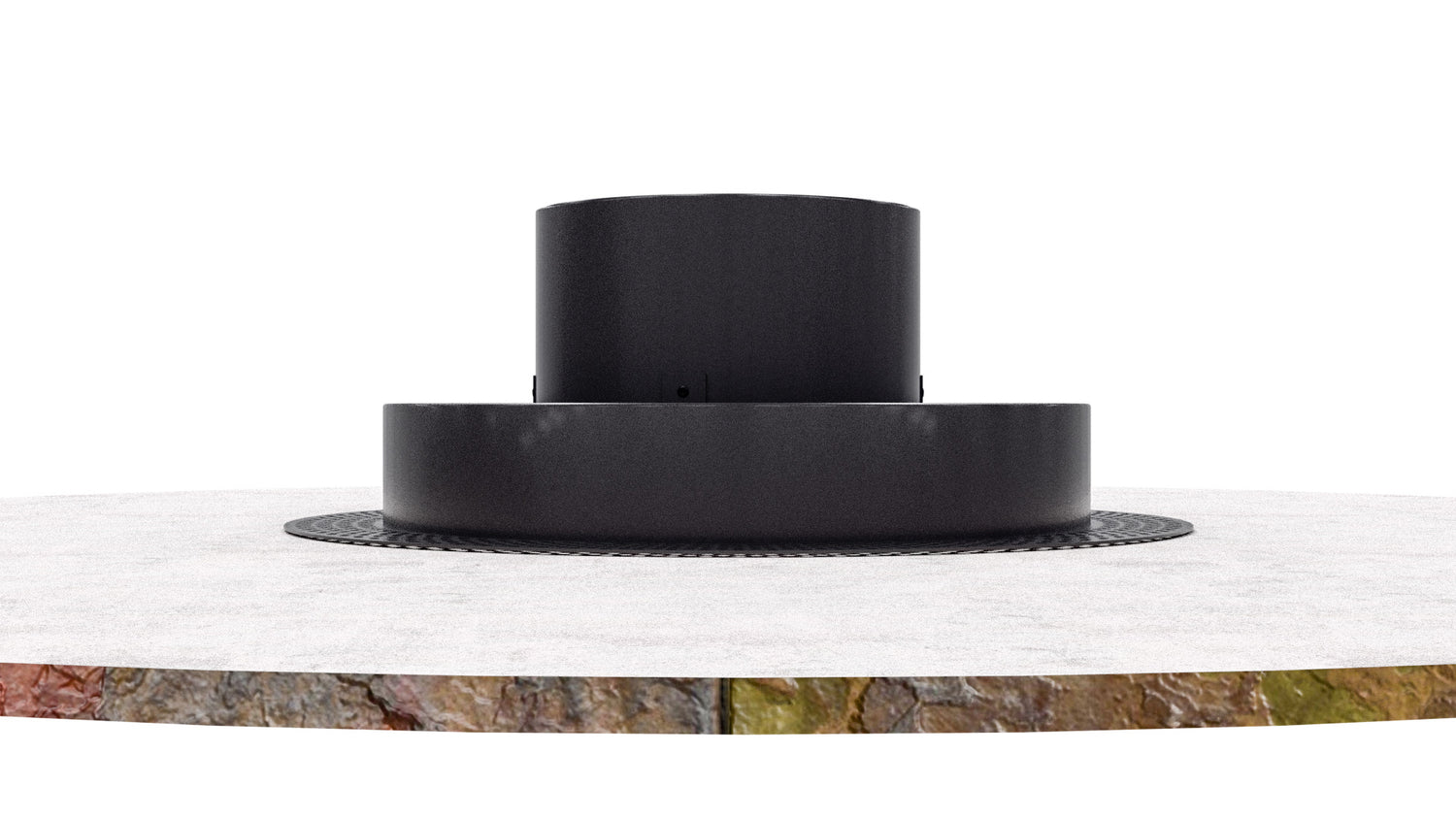

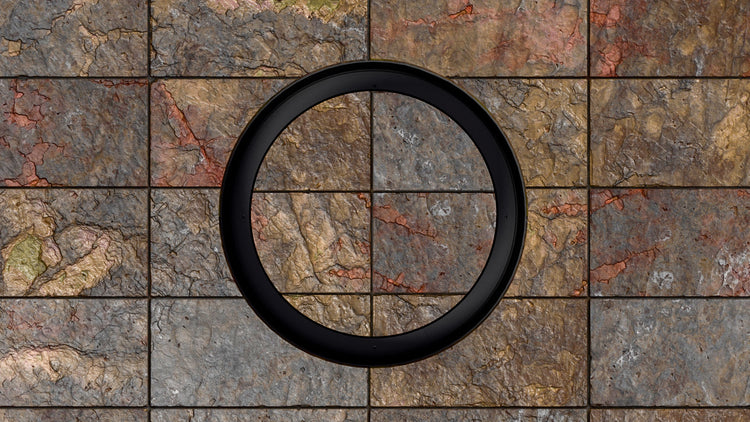

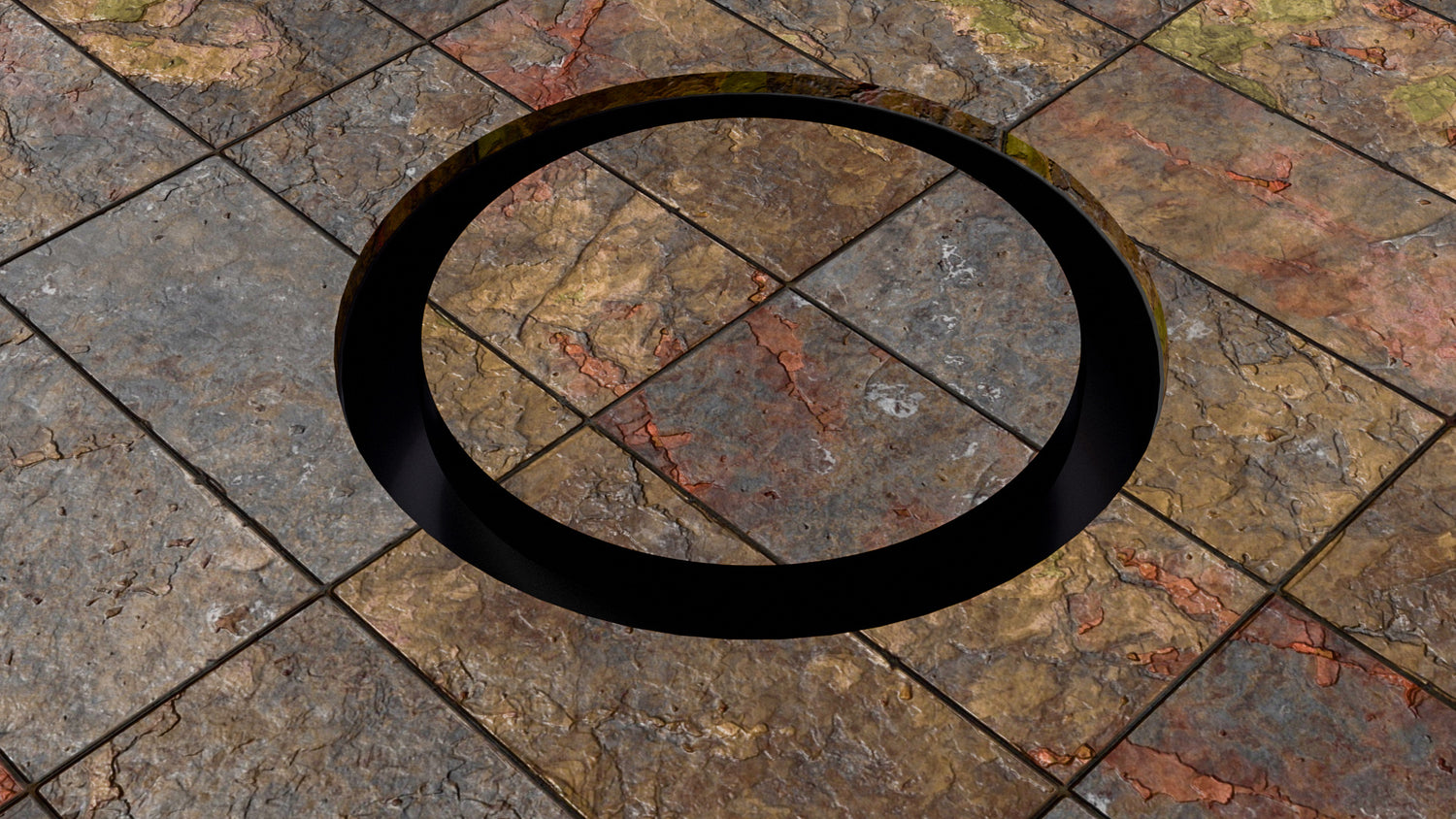

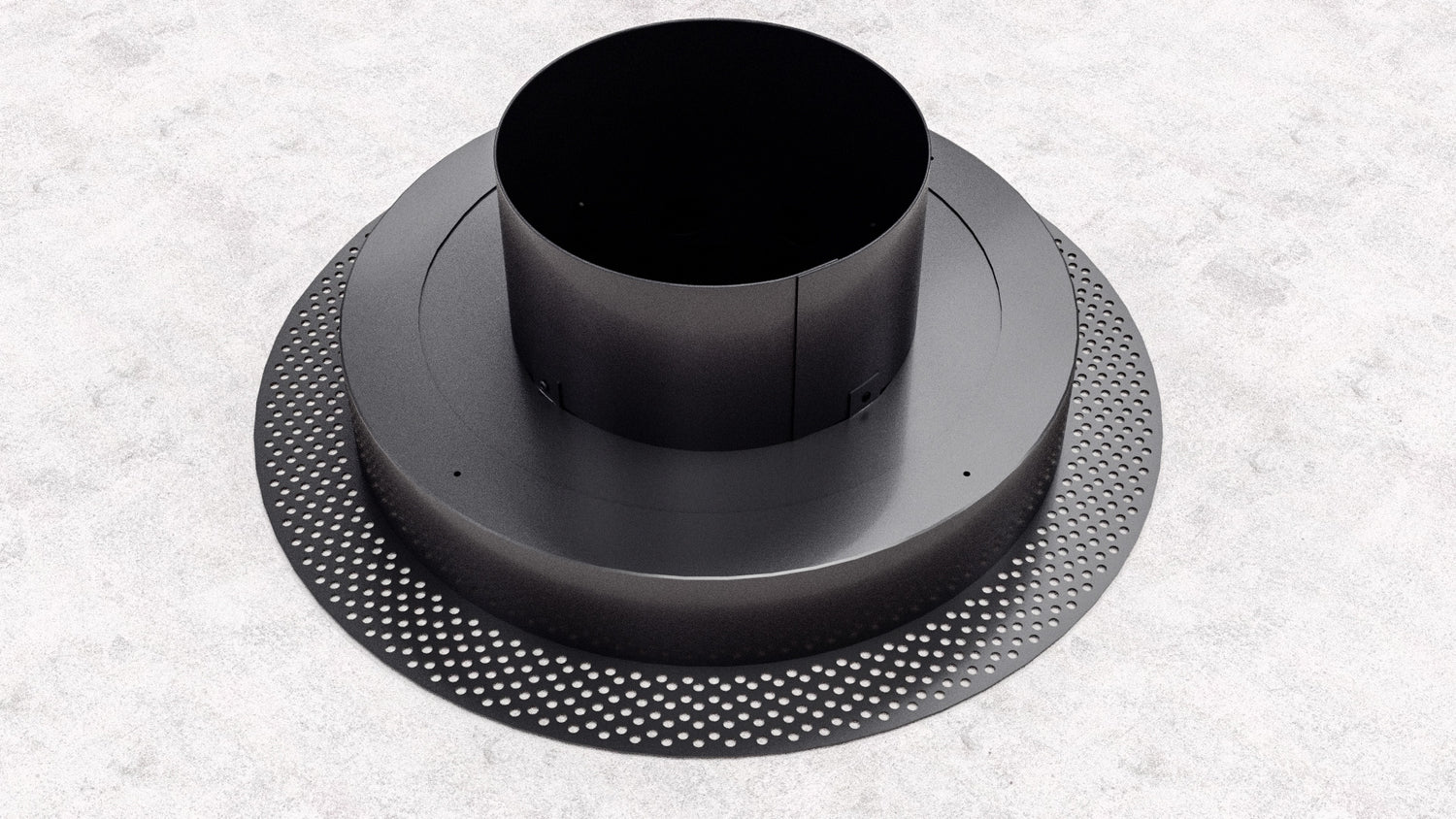

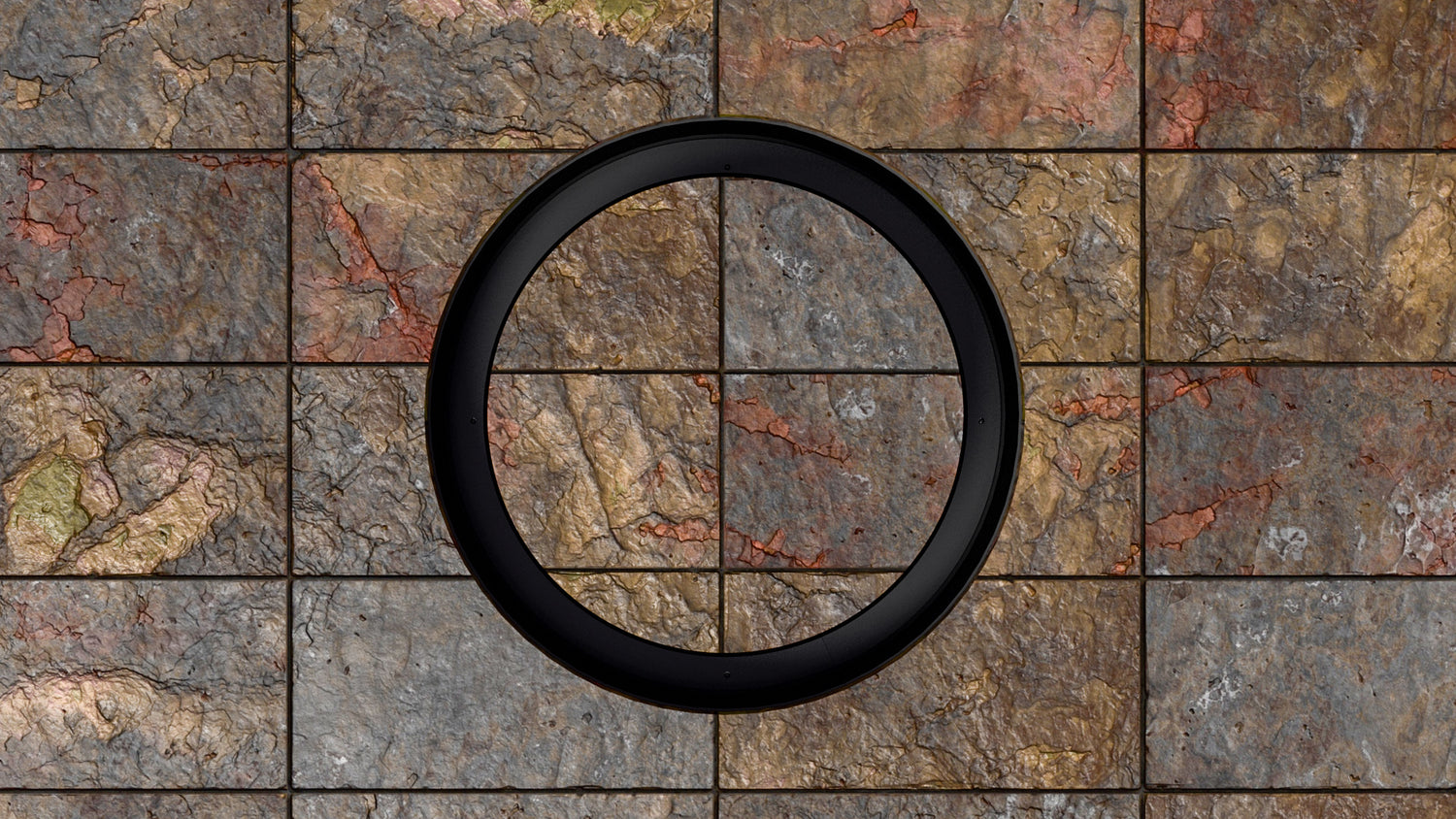

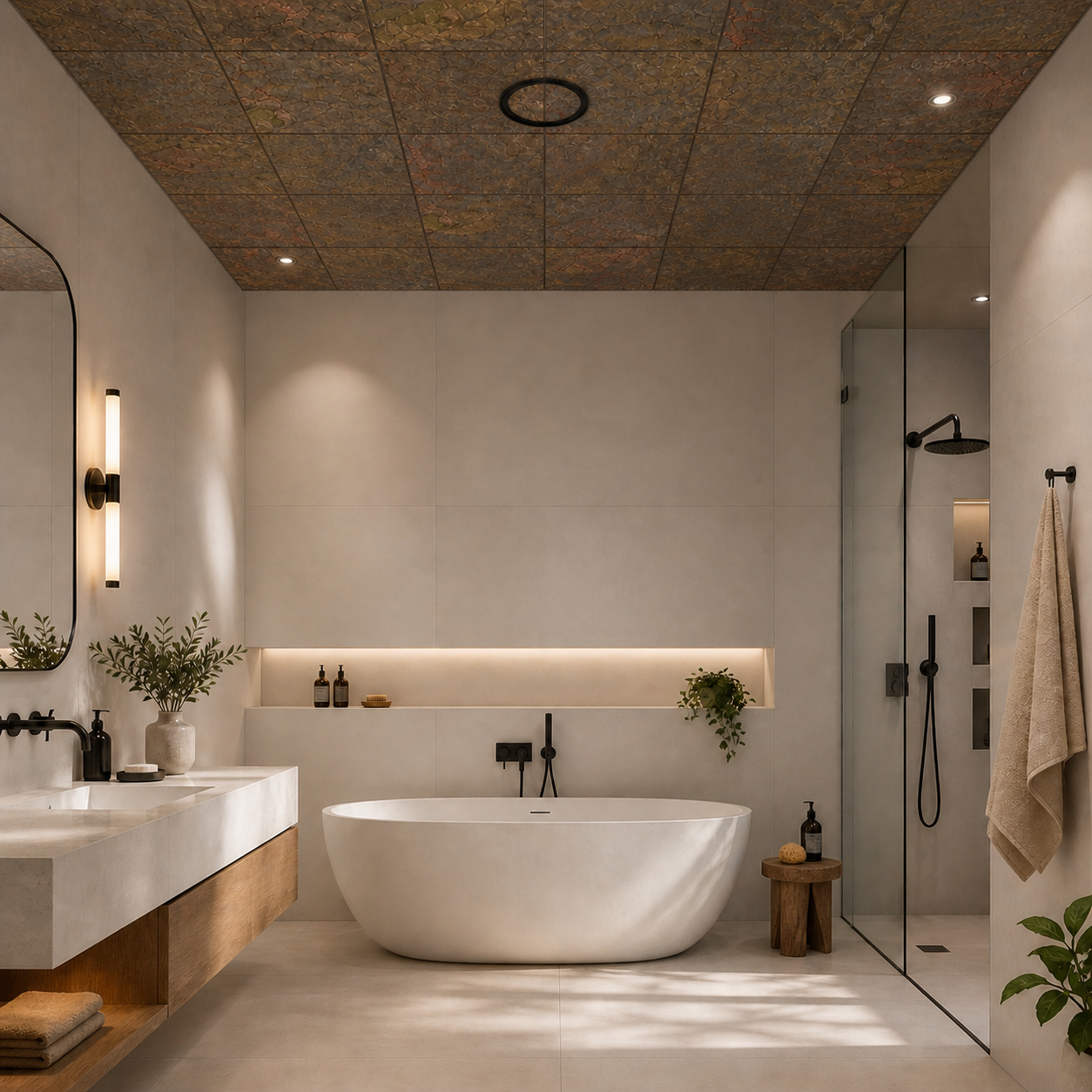

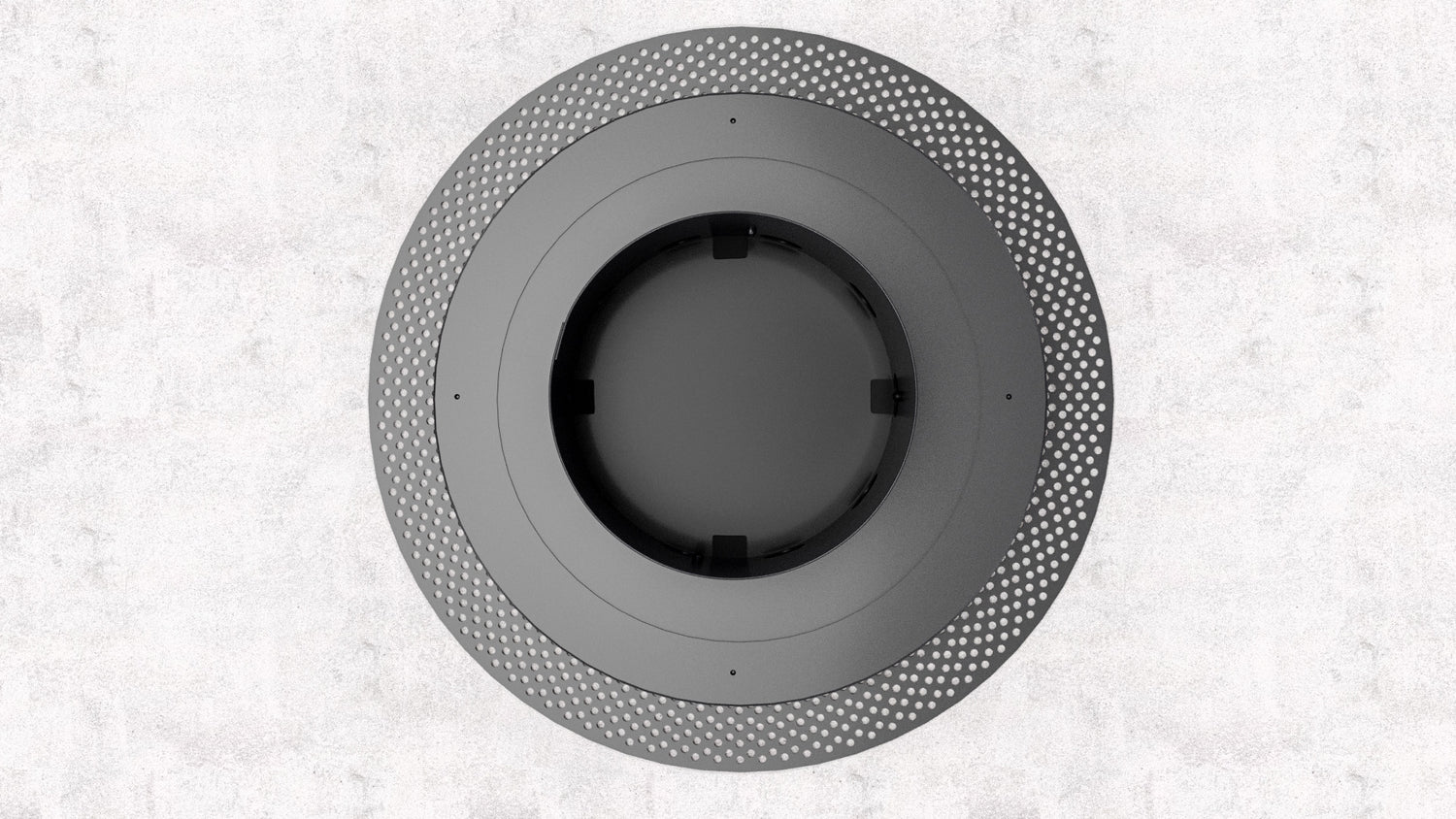

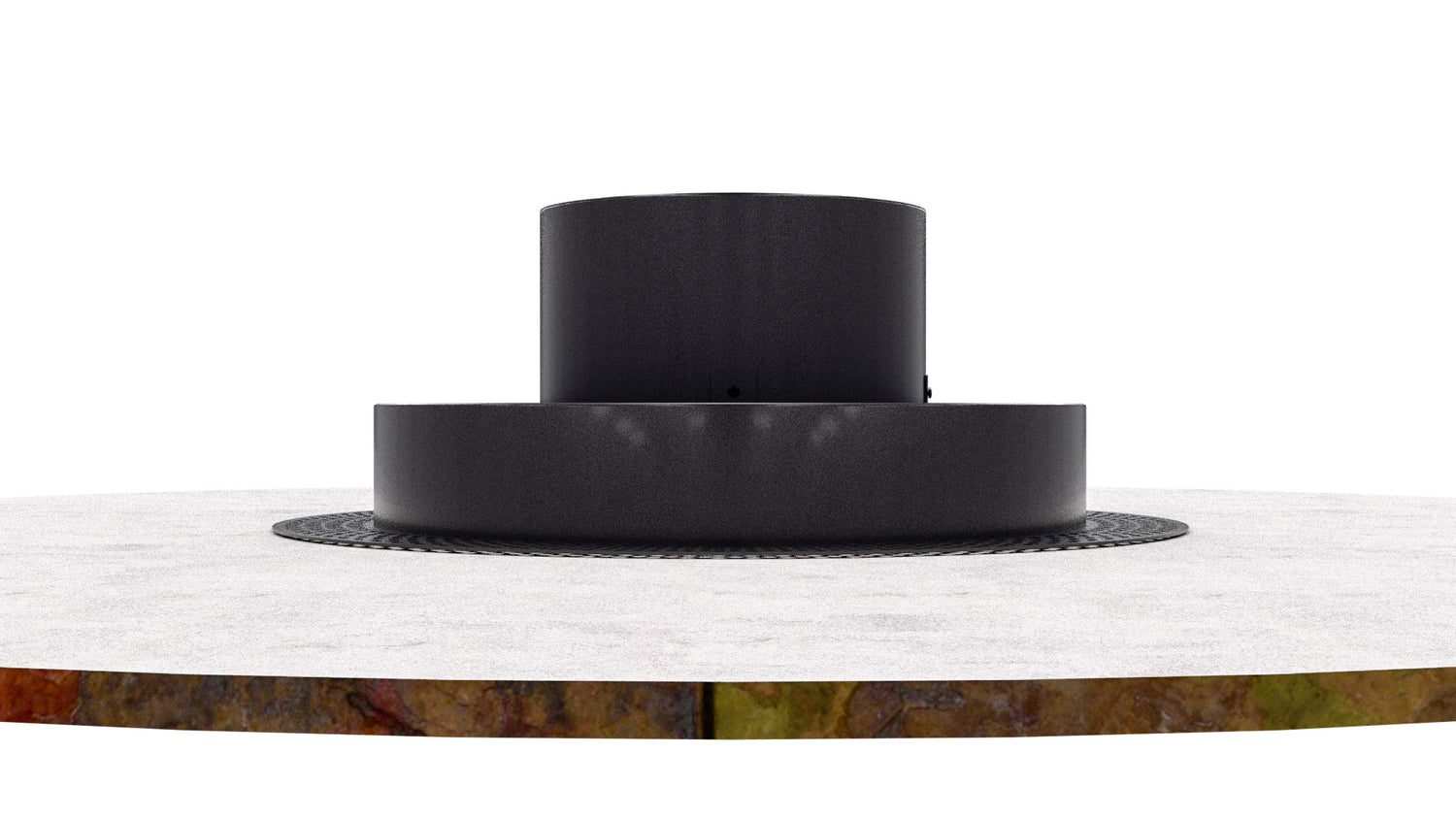

The Ventech VRG270T is a discreet, architectural ceiling grille designed for seamless integration into modern interiors. Featuring a clean 270mm round vent featuring a sleek negative detail, designed exclusively for tiled or timber ceilings and walls. The central face is supplied by others to ensure a seamless match with surrounding surfaces.

The central plaque is removable, allowing for easy cleaning.

Designed for general ventilation applications, the VRG270T includes a 150mm spigot for duct connection.

For a completely unified ceiling appearance, exposed surfaces can be re-coloured by painting at the same time as the ceiling.

Full Dimensions

Frame : 270mm ID
Plaque size: 220mm OD
Top spigot: 150mm dia

Specifications

- VRG270T Round Frameless Grille Vent Inset with 150mm spigot top entry.
- The frame and plaque are made from zinc plated and powder coated steel.
- Suitable fans, ductwork and exterior grilles are also available.
- At a typical flow rate of 60-70 litres per second, pressure drop is 26 pa.
- Ceiling battens not required.

Shipping

Shipping available in New Zealand and Australia only.

Dimensions

For the full product brochure click here.

Download Brochure
