Ventech Frameless Plaster-in Square Grille - VSQ300

Formerly VFG300

300 mm

For larger ventilation requirements

Regular price
$416.00 NZD
Regular price
Sale price
$416.00 NZD
GST inclusive

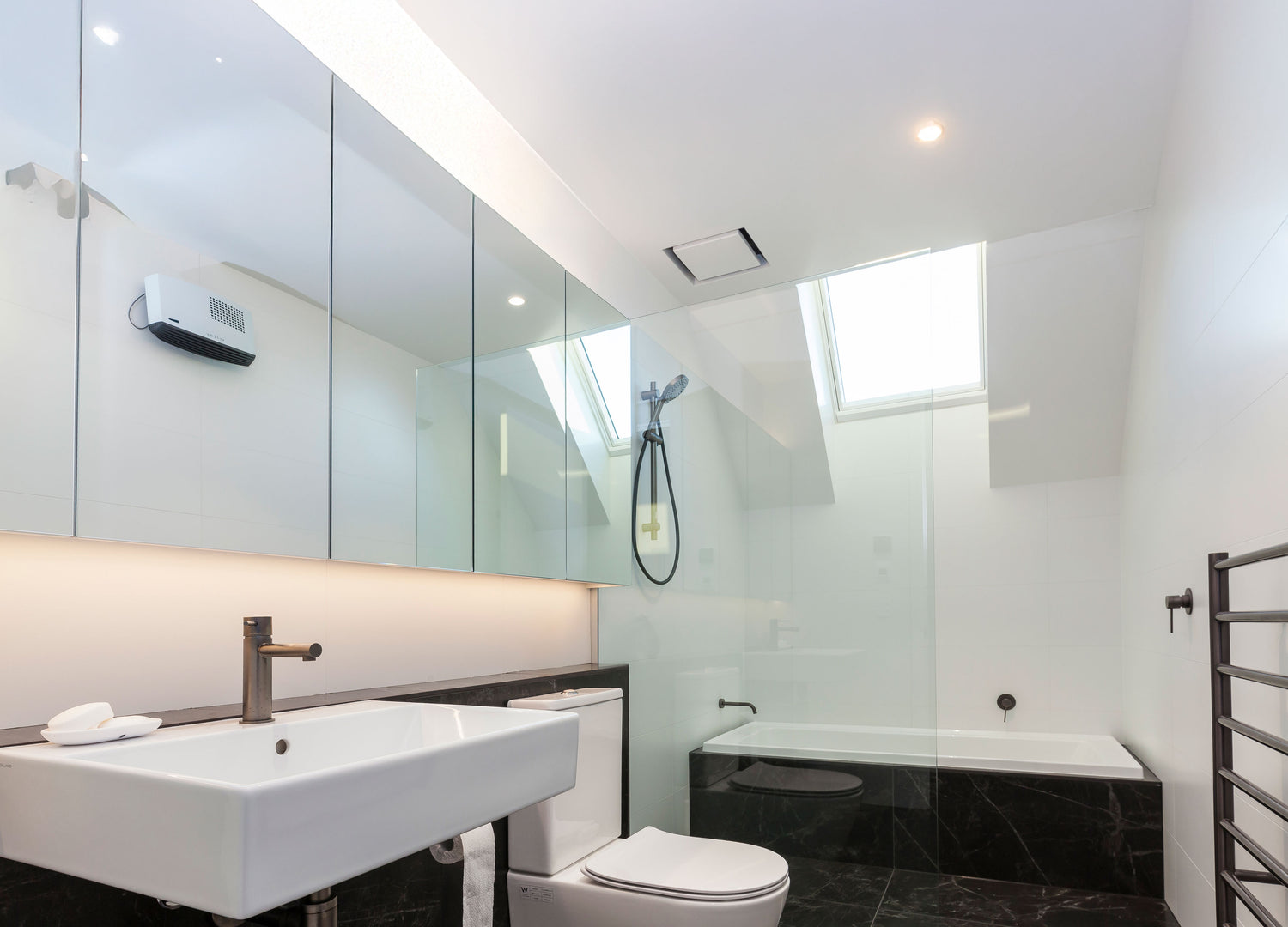

The Ventech VSQ300 is a minimalist 300 mm square grille designed for larger spaces and higher-capacity ventilation applications. The VSQ300 is well suited to larger bathrooms, laundries, living areas and commercial interiors, and can also be incorporated into ducted HVAC and whole-home ventilation systems.

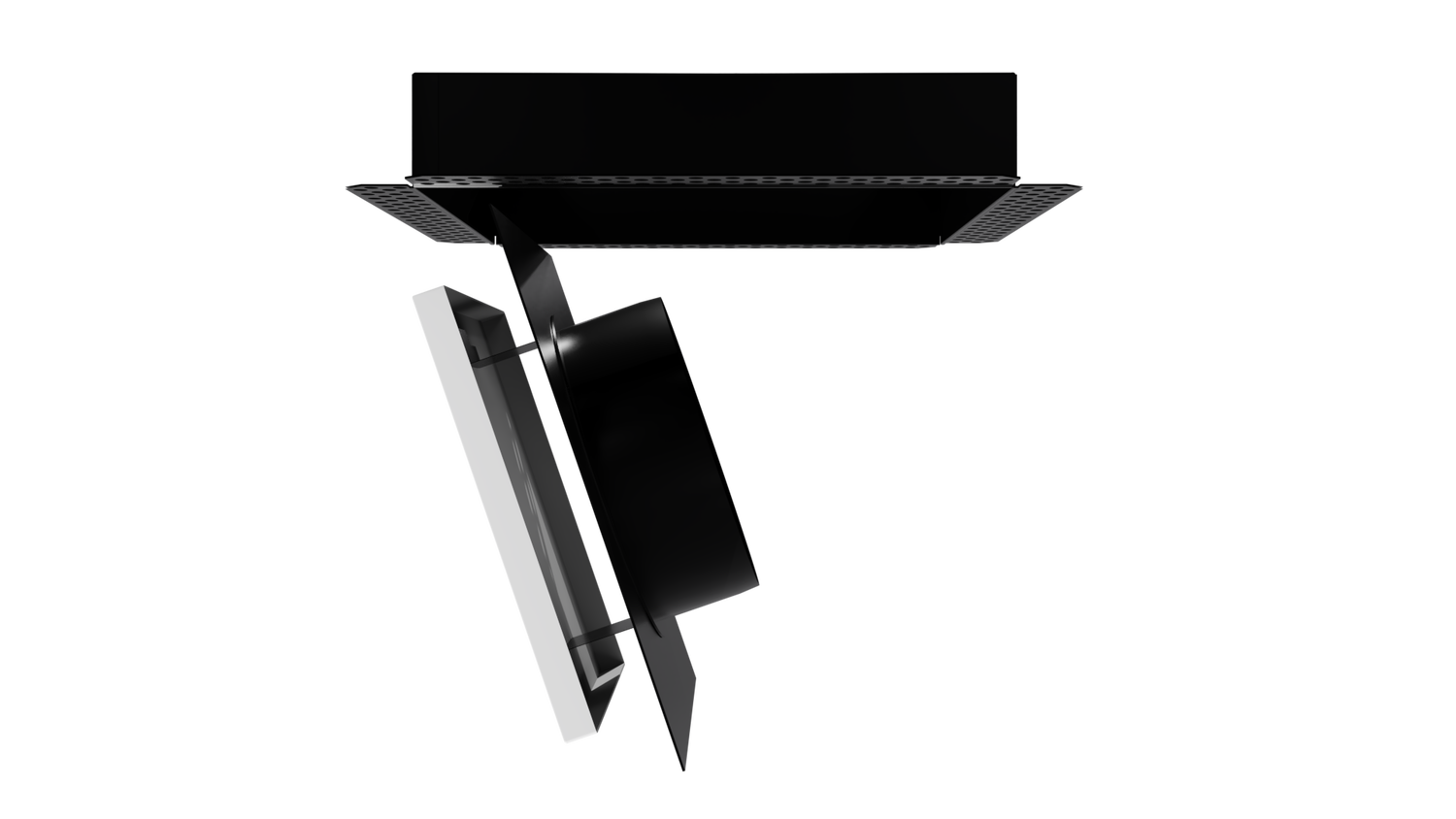

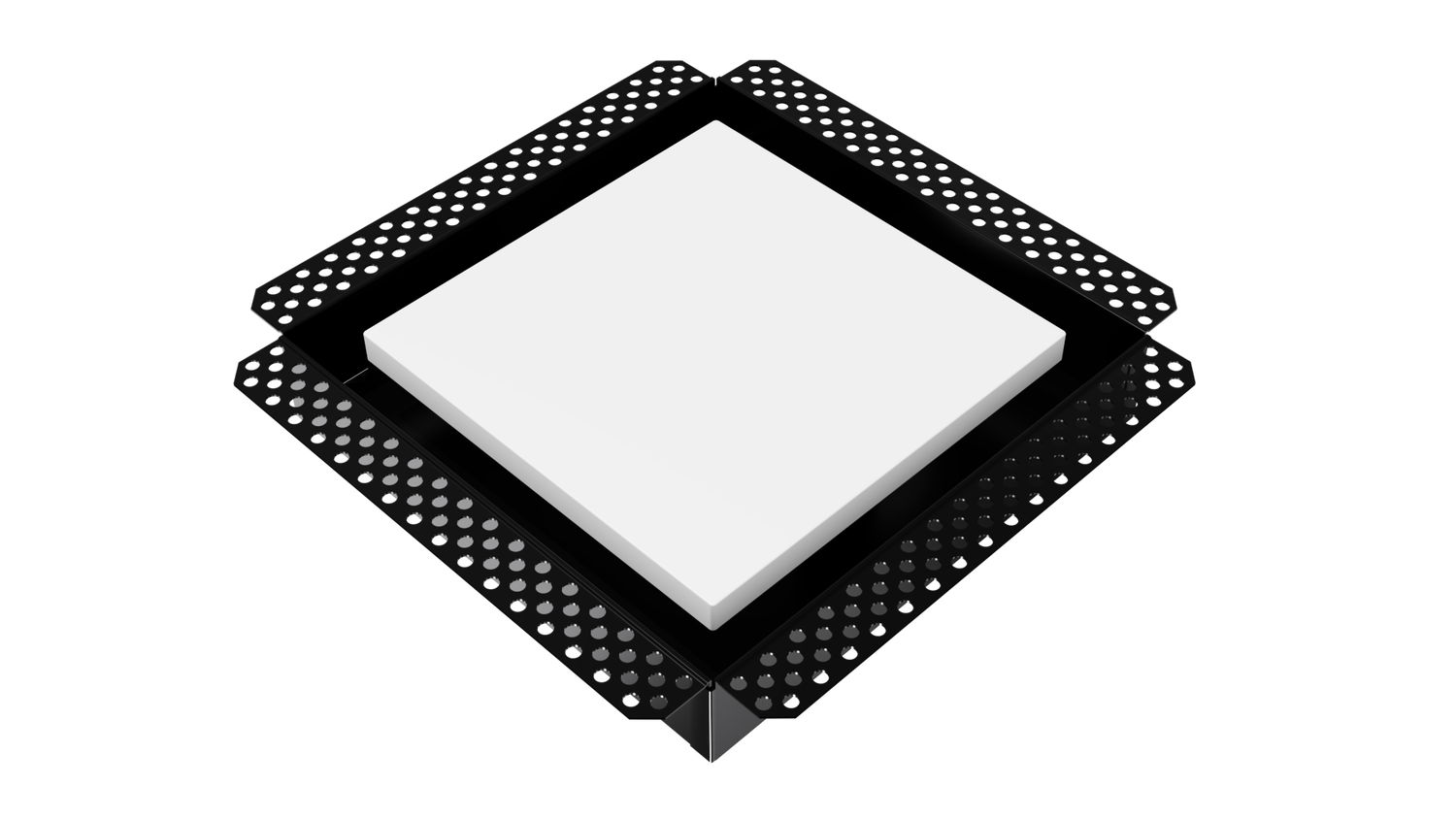

Only the clean negative detail is visible once installed, with the framework and fixings concealed for a seamless finish. If required, exposed surfaces can be painted at the same time as the ceiling to blend naturally into the surrounding interior.

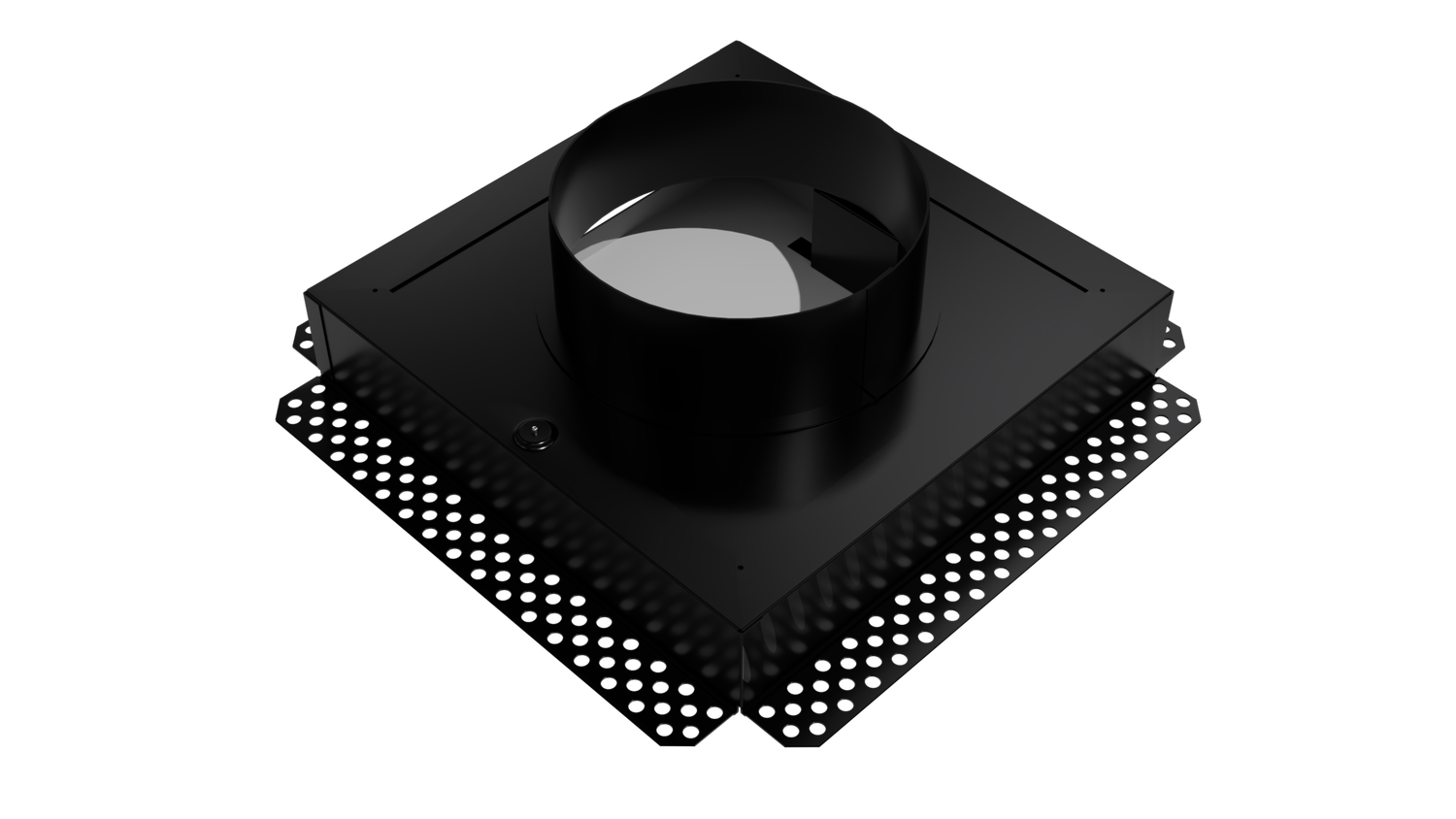

Ideal for larger ventilation requirements, the VSQ300 incorporates a 200mm spigot for duct connection.

For a fully unified appearance, exposed surfaces can be re-coloured by painting at the same time as the ceiling.

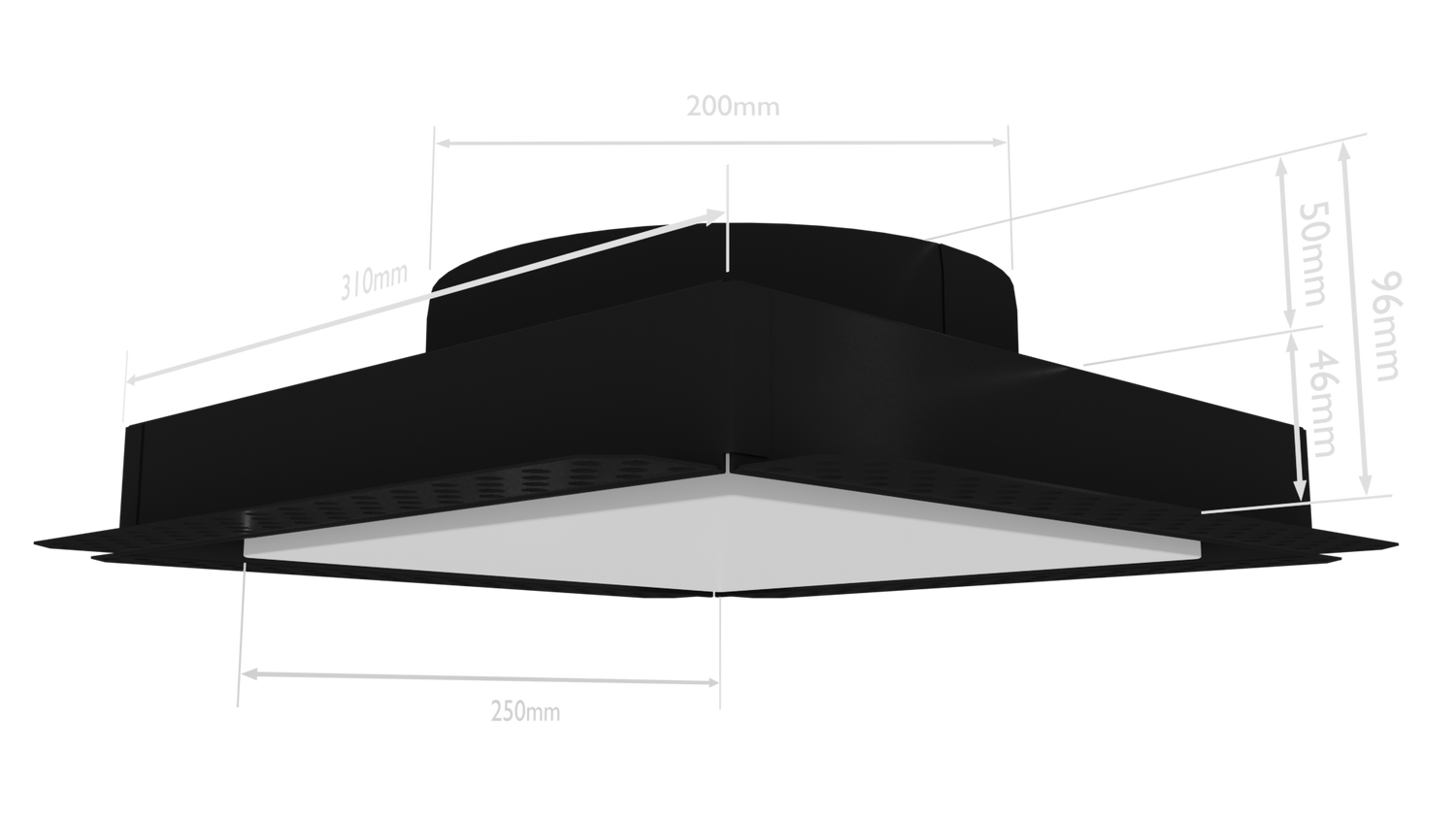

Full Dimensions

Dimensions: 300 x 300mm
Plaque size: 250 x 250mm
Top spigot: 200mm dia

Specifications

- Ventech VSQ300 Frameless Grille with 200mm spigot.
- The frame and plaque are made from zinc plated and powder coated steel.
- Suitable fans, ductwork and exterior grilles are also available.
- At a typical flow rate of 90 litres per second, pressure drop is 28 pa.

Shipping

Shipping available in New Zealand and Australia only.

Dimensions

For the full product brochure click here.

Download Brochure
