Ventech Frameless Square Magnetic Grille - VSQ200M

Formerly VFG200

200 mm

For smaller bathrooms, laundries & showers

Regular price
$310.00 NZD
Regular price
Sale price
$310.00 NZD
GST inclusive

Ceiling or Side Wall Mounted

Plaster board or tiled ceilings and walls.

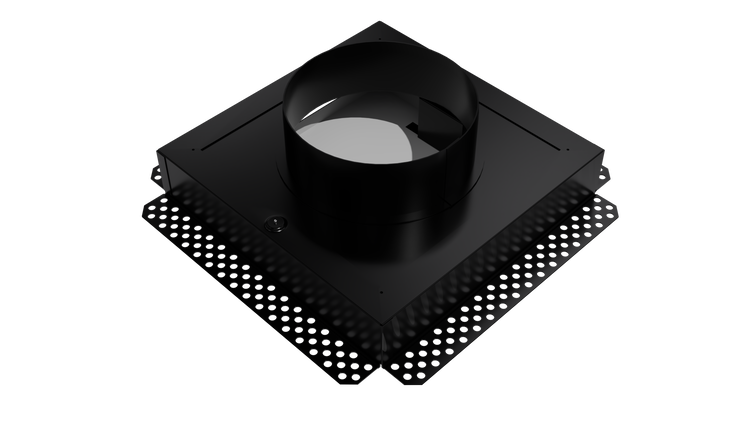

Standard top exit spigot

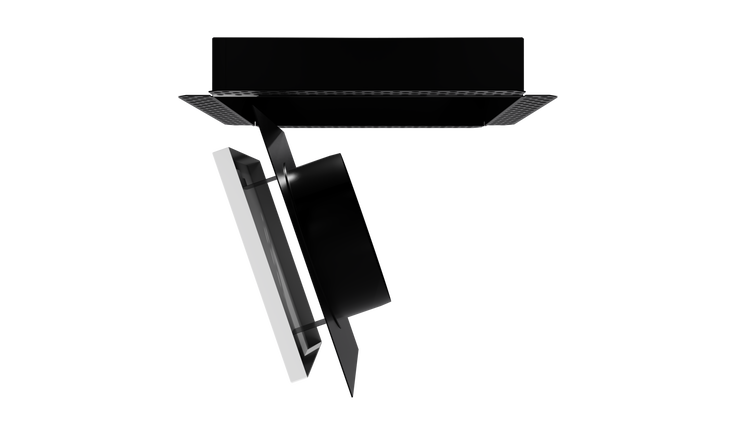

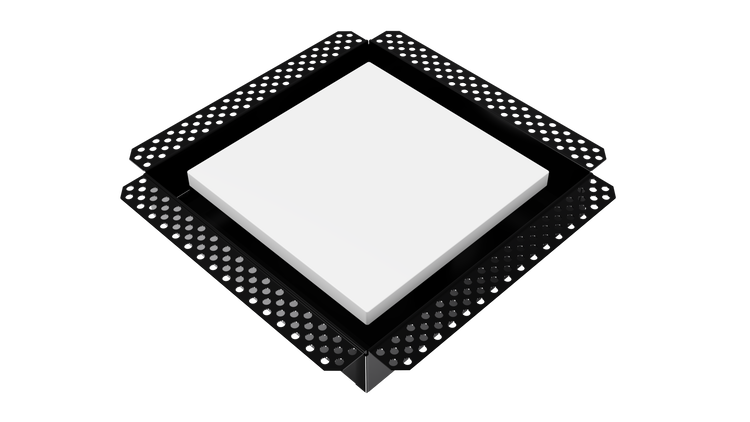

A minimalist grille with a plastered in frame shows only a negative detail square. Framework and fixings are not visible. The central plaque is magnetically attached for easy installation and cleaning. If required, the exposed surfaces can be re-coloured by painting at the same time as the ceiling.

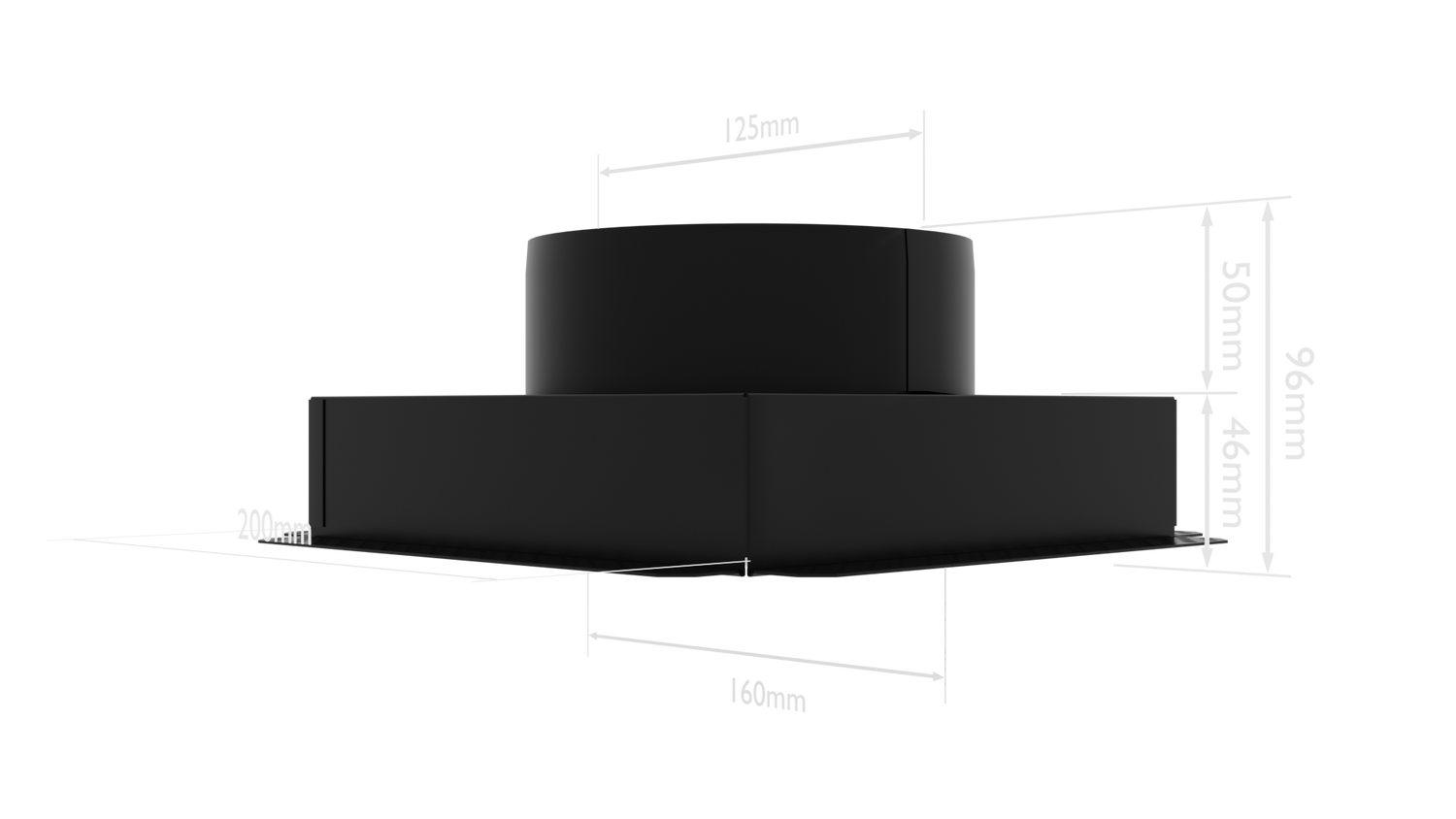

Full Dimensions

Dimensions: 200 x 200 mm
Plaque size: 160 x 160 mm
Top spigot: 125mm dia

Specifications

- Ventech VSQ200M Frameless Magnetic Grille with 125mm spigot.
- Central plaque magnetically attached.
- The frame and plaque are made from zinc plated and powder coated steel.
- Suitable fans, ductwork and exterior grilles are also available.
- At a typical flow rate of 50 litres per second, pressure drop is 24 pa.
- Ceiling battens not required.

Shipping

Shipping available in New Zealand and Australia only.

Dimensions

For the full product brochure click here.

Download Brochure
